Engine Block Heater - Installation-5.7L

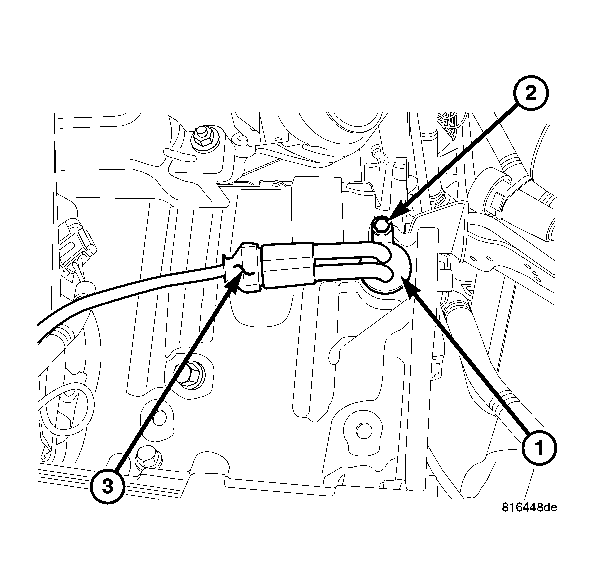

Fig 1: Block Heater Components
GC0038943Courtesy of CHRYSLER LLC
1 - BLOCK HEATER
  1. Thoroughly clean cylinder block core hole and block heater seat.
  2. Insert block heater assembly (1) into the block.
  3. With block heater fully seated, tighten bolt (1) to 2 N.m (17 in. lbs.) torque.
