Left Front

Fig 1: Power Distribution Center (PDC)
GC0026780Courtesy of CHRYSLER LLC
1 - POWER DISTRIBUTION CENTER
2 - BATTERY
  1. Remove the air box cover and air intake hose.
  2. Remove the 3 PDC bracket nuts (1).
    Fig 2: Upper Bolts
    GC0026779Courtesy of CHRYSLER LLC
    1 - PDC
    2 - UPPER MOUNTING NUTS
  3. Move the PDC (1) off to the side to access the four upper shock mount nuts (2).
  4. Remove the four upper shock mount nuts (2).
  5. Raise and support the vehicle.
  6. Remove the tire.
  7. Remove the two brake caliper adapter bolts.
  8. Support the brake caliper adaptor and caliper. Do not allow the caliper to hang by the brake hose.
  9. Remove the disc brake rotor.

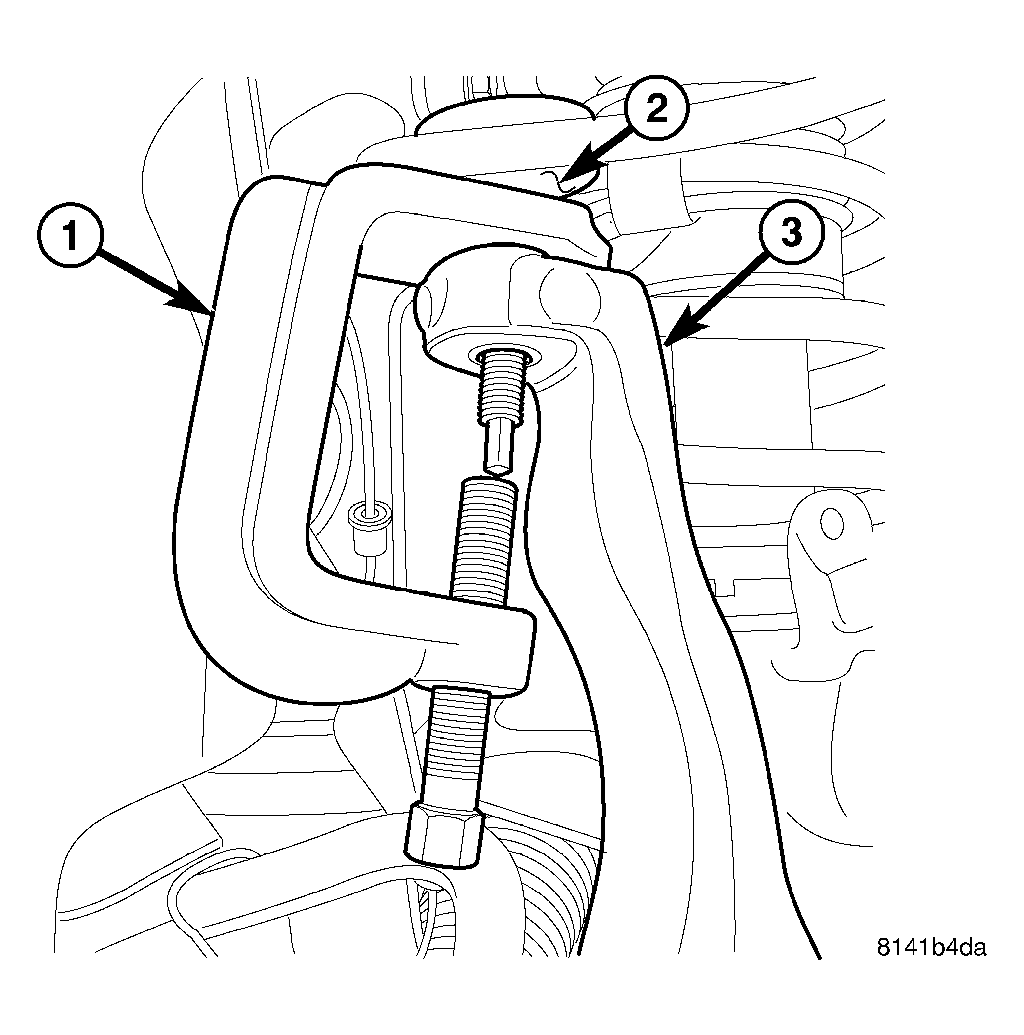

    Fig 3: Ball Joint Separator Tool
    GC0026769Courtesy of CHRYSLER LLC
  10. Remove the upper ball joint nut.
  11. Separate the upper ball joint (2) from the knuckle (3) using special tool 8677 (1).
    Fig 4: Identifying Knuckle, Clevis Bracket And Bushing & Stabilizer Link
    GC0026770Courtesy of CHRYSLER LLC
    1 - KNUCKLE
    2 - CLEVIS BRACKET AND BUSHING
    3 - STABILIZER LINK
  12. Remove the lower clevis bolt (3) at the lower control arm.
  13. Remove the lower stabilizer bolt (2) at the lower control arm.
    Fig 5: Shock Mount Upper
    GC0026776Courtesy of CHRYSLER LLC
    1 - UPPER CONTROL ARM
    2 - MOUNTING HOLES
    3 - SHOCK ASSEMBLY
    4 - CLEVIS BRACKET
  14. Remove the shock (3) from the vehicle.
  15. Remove the spring if necessary. See REMOVAL .
