Right Front

Fig 1: Shock Mount Upper
GC0026776Courtesy of CHRYSLER LLC
1 - UPPER CONTROL ARM
2 - MOUNTING HOLES
3 - SHOCK ASSEMBLY
4 - CLEVIS BRACKET
  1. Install the clevis bracket (4) to the shock (3) and tighten to 122 N.m (90 ft. lbs.).
  2. Install the shock assembly (3) to the vehicle.

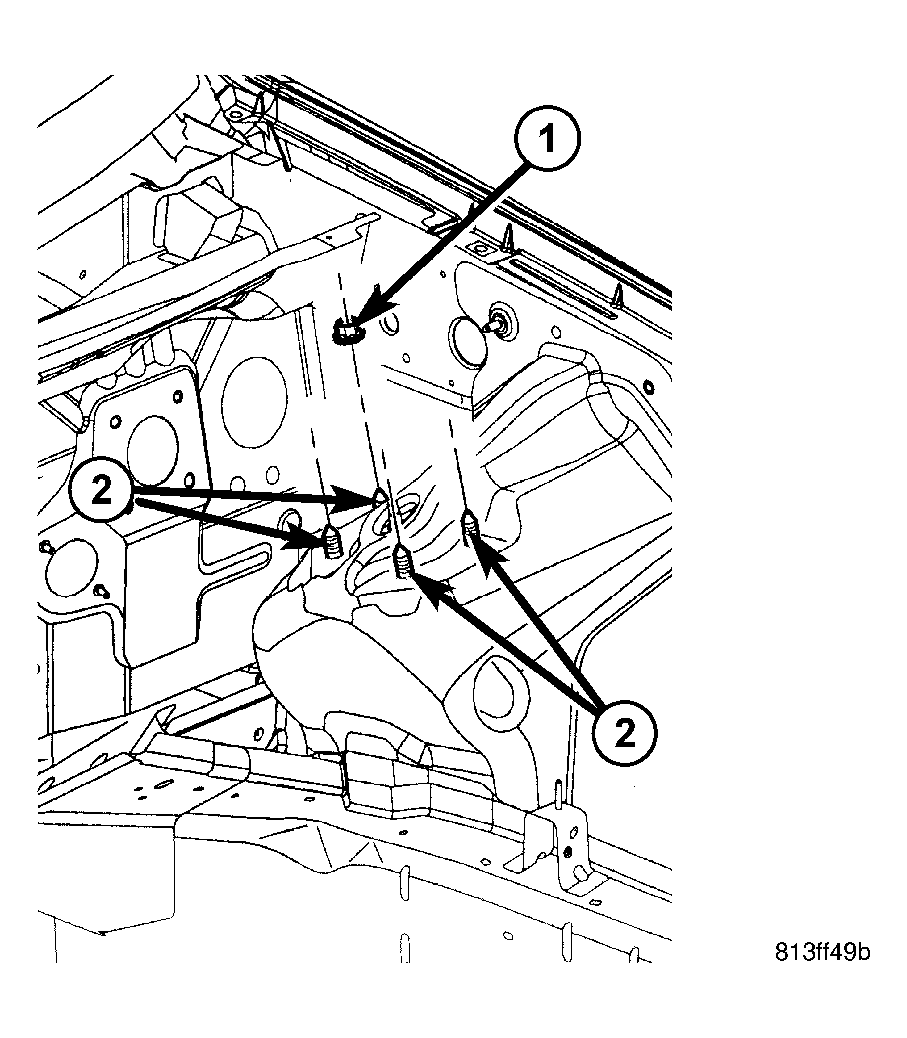

    Fig 2: Shock Tower
    GC0026778Courtesy of CHRYSLER LLC
    1 - NUT
    2 - UPPER SHOCK STUDS
  3. Install the four upper shock nuts (1), Tighten to 95 N.m (70 ft. lbs.).
  4. Install the coolant reservoir bolt.
  5. Reconnect the cruise control servo wiring connector.
  6. Install the air box cover and air intake hose.
  7. Raise the vehicle up.
    Fig 3: Identifying Knuckle, Clevis Bracket And Bushing & Stabilizer Link
    GC0026770Courtesy of CHRYSLER LLC
    1 - KNUCKLE
    2 - CLEVIS BRACKET AND BUSHING
    3 - STABILIZER LINK
  8. Install the lower stabilizer bolt (3) at the lower control arm.
  9. Install the lower clevis bolt (2) at the lower control arm and tighten to 169 N.m (125 ft. lbs.).
  10. Install the upper ball joint into the knuckle (1) and tighten the nut to 75 N.m (55 ft. lbs.).
  11. Install the disc brake rotor.
  12. Install the caliper adaptor mounting bolts to 176 N.m (130 ft. lbs.).
  13. Install the tire and wheel assembly.
  14. Lower the vehicle.
