5.7L & Diesel

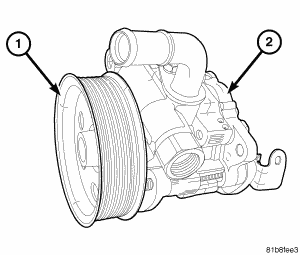

Fig 1: Pump
GC0058602Courtesy of CHRYSLER LLC

Hydraulic pressure for the power steering system is provided by a belt driven power steering pump (2). The pump shaft has a pressed-on drive pulley (1) that is belt driven by the crankshaft pulley. The power steering reservoir is remote mounted to the fan shroud.
