Rack & Pinion Power Steering System (Service Information): Column: Shroud: Installation: Shrouds

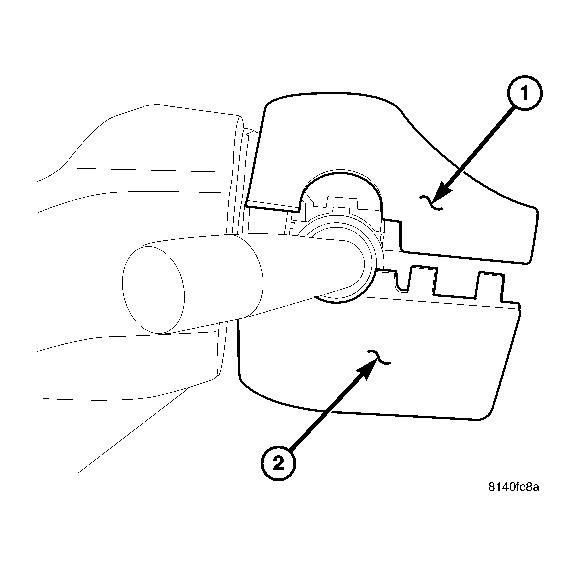

Fig 1: Upper & Lower Shrouds

Courtesy of CHRYSLER LLC

1. Install the upper shroud (1) on the column.
2. Install the lower shroud (2) to the column.
3. Snap the two halves back into place.
4. Install the three mounting bolts to secure the shroud in place.
