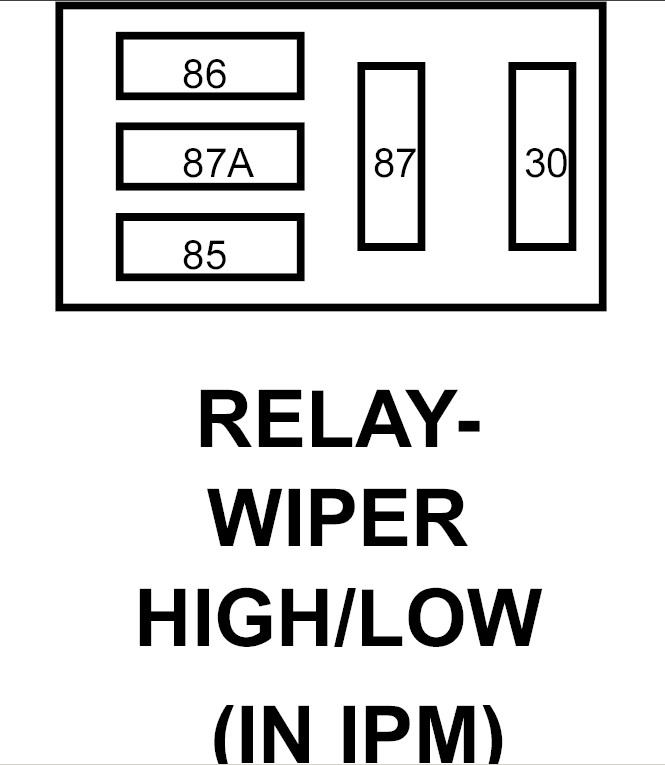

Wiper High/Low Relay Connector End View
RELAY-WIPER HIGH/LOW - 0-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
W6 16BR/LB |
WIPER ON/OFF RELAY OUTPUT |
| 85 |
W2 20BR/LG |
HIGH/LOW WIPER RELAY CONTROL |
| 86 |
A5 16RD/VT |
FUSED B(+) |
| 87 |
W4 16BR/OR |
FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT |
| 87A |
W3 16BR/WT |
FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT |
