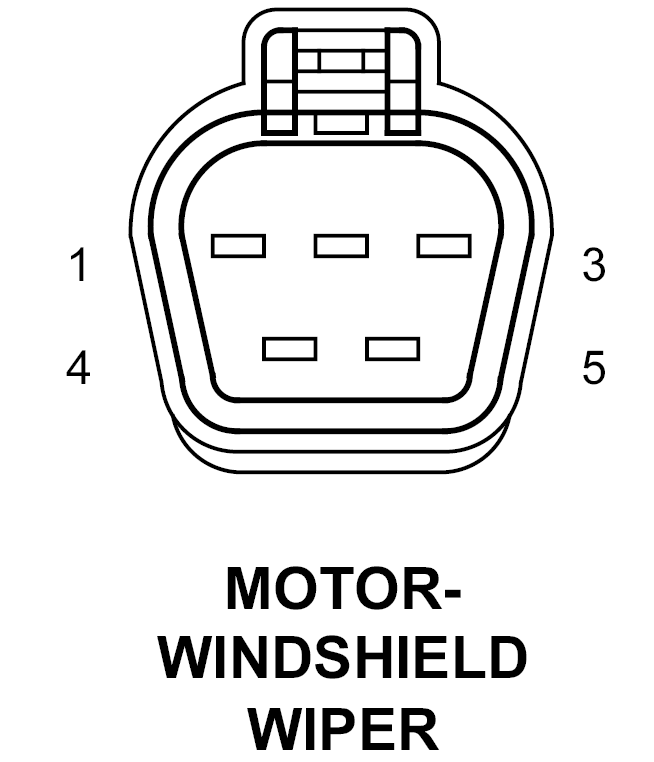

Windshield Wiper Motor Connector End View
MOTOR-WINDSHIELD WIPER - 5-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | W7 20BR/GY | FRONT WIPER PARK SWITCH SENSE (LHD) |
| 1 | W3 16BR/WT | FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT (RHD) |
| 2 | - | - |
| 3 | W4 16BR/OR | FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT (LHD) |
| 3 | W7 20BR/GY | FRONT WIPER PARK SWITCH SENSE (RHD) |
| 4 | Z103 16BK/WT | GROUND (LHD) |
| 4 | W4 16BR/OR | FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT (RHD) |
| 5 | W3 16BR/WT | FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT (LHD) |
| 5 | Z103 16BK/WT | GROUND (RHD) |
