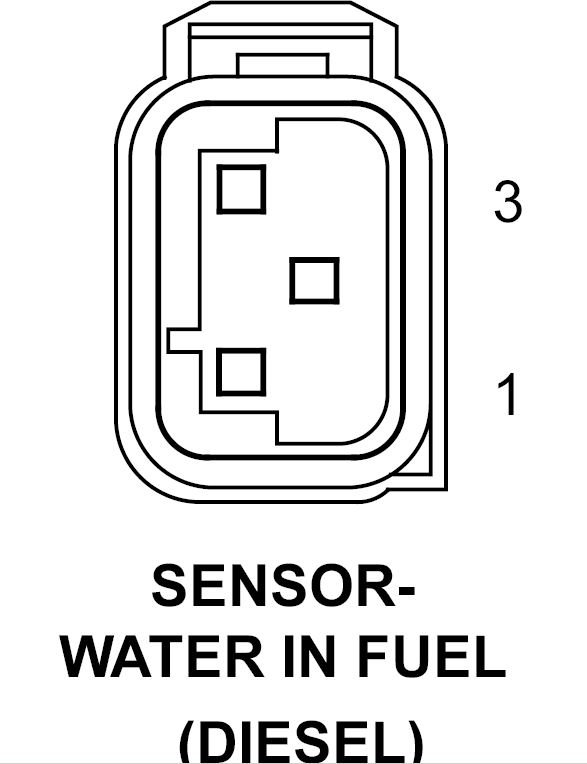

Water In Fuel Sensor (Diesel) Connector End View
SENSOR-WATER IN FUEL - 3-WAY(DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K923 18GY/DG |
WATER IN FUEL SENSOR GROUND |
| 2 |
G123 18PK/RD |
WATER IN FUEL SENSOR SIGNAL |
| 3 |
A15 18RD/DG |
FUSED ASD RELAY OUTPUT |
