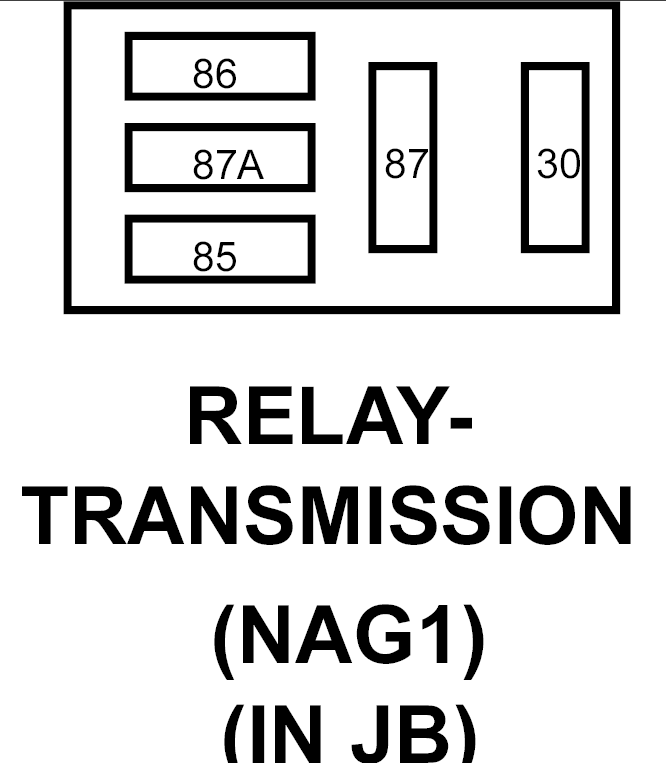

Transmission Relay (NAG1) Connector End View
RELAY-TRANSMISSION - 0-WAY(NAG1)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
INTERNAL |
FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 85 |
INTERNAL |
GROUND |
| 86 |
INTERNAL |
FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 87 |
F946 20PK/LG |
TRANSMISSION RELAY OUTPUT |
| 87A |
- |
- |
