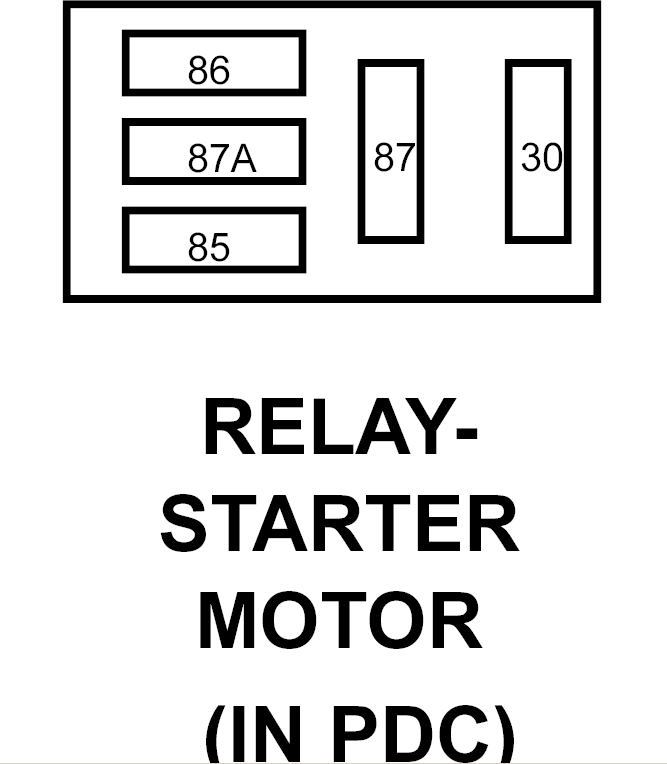

Starter Motor Relay Connector End View
RELAY-STARTER MOTOR - 0-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A901 12RD/TN |
FUSED B(+) |
| 85 |
T752 20DG/OR |
ENGINE STARTER MOTOR RELAY CONTROL |
| 86 |
F942 20PK/LG |
FUSED IGNITION SWITCH OUTPUT (RUN-START) DIESEL |
| 86 |
F26 18PK/OR |
IGNITION SWITCH OUTPUT (START) GAS |
| 87 |
T750 12YL/GY |
ENGINE STARTER MOTOR RELAY OUTPUT |
| 87A |
- |
- |
