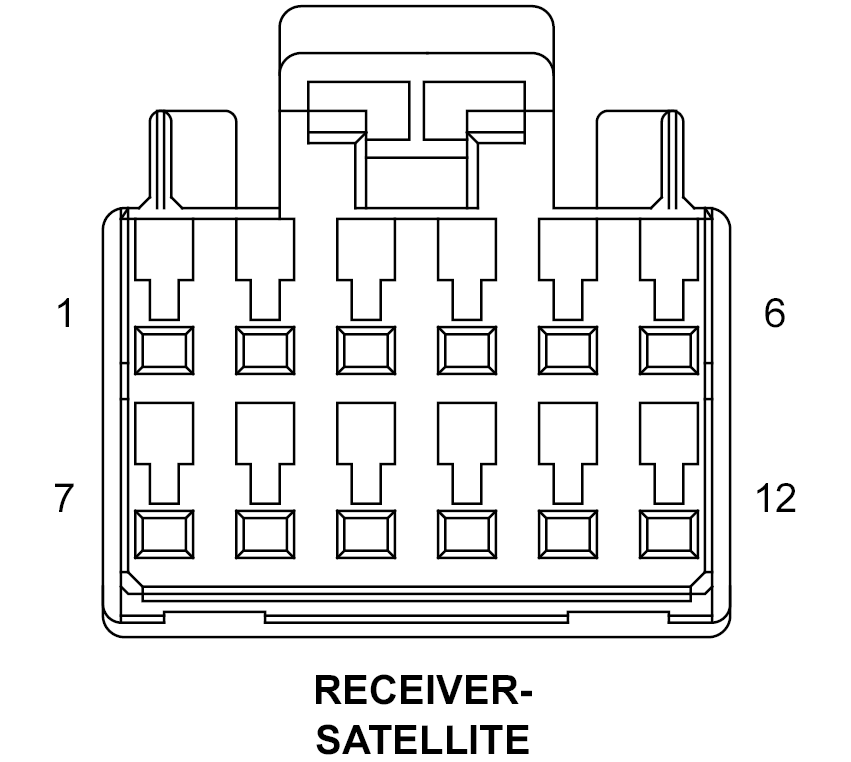

Satellite Receiver Connector End View
RECEIVER-SATELLITE - 12-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
X17 20DG/OR |
AUDIO SIGNAL LEFT (+) |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
Z514 20BK/LG |
GROUND |
| 5 |
- |
- |
| 6 |
A114 20OR/RD |
FUSED B(+) |
| 7 |
X16 20DG/YL |
AUDIO SIGNAL RIGHT (+) |
| 8 |
X917 20DG |
AUDIO SIGNAL COMMON |
| 9 |
- |
- |
| 10 |
- |
- |
| 11 |
D55 20WT/OR |
CAN B BUS (+) |
| 12 |
D54 20WT |
CAN B BUS (-) |
