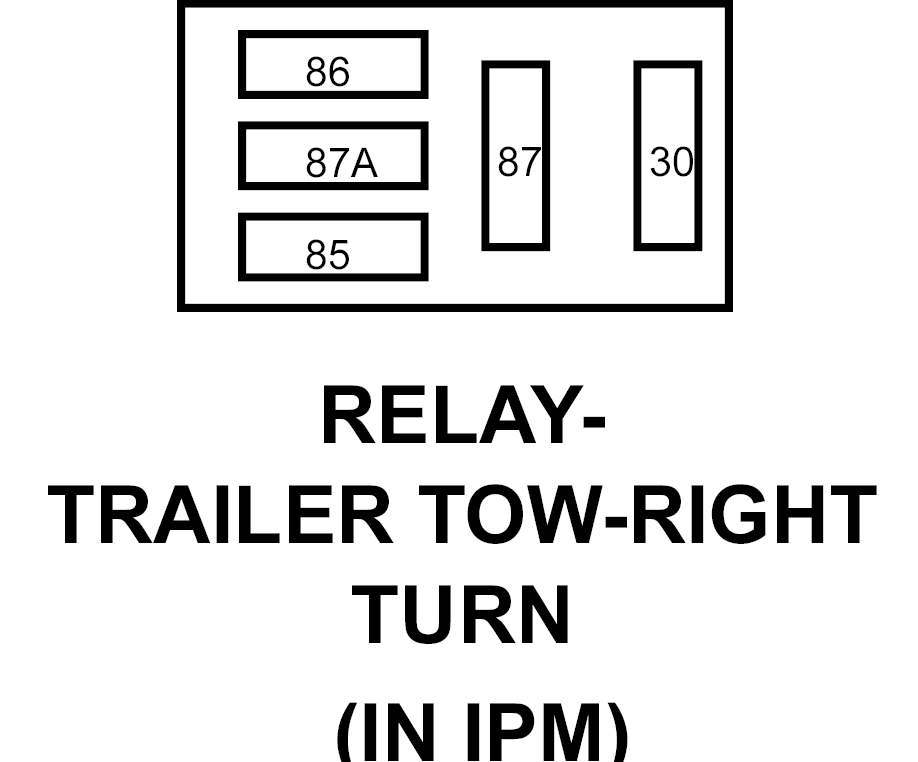

Right Trailer Tow Turn Relay Connector End View
RELAY-TRAILER TOW-RIGHT TURN - 0-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A921 18RD |
FUSED B(+) |
| 85 |
L656 20WT/DG |
RIGHT TRAILER TOW BRAKE LAMP RELAY CONTROL |
| 86 |
A921 18RD |
FUSED B(+) |
| 87 |
L614 18WT/DB |
TRAILER TOW RIGHT STOP/TURN SIGNAL |
| 87A |
- |
- |
