Right Rear Wheel Speed Sensor Connector End View
Right Rear Wheel Speed Sensor Connector End View

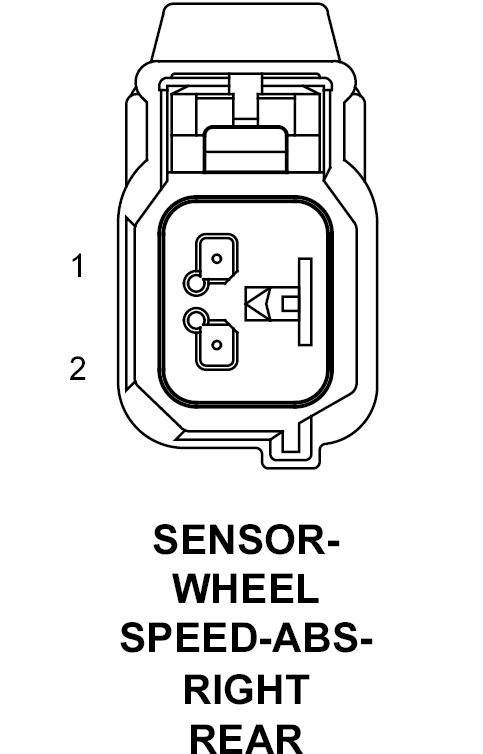

SENSOR-WHEEL SPEED-ABS-RIGHT REAR - 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
B2 20DG/WT
RIGHT REAR WHEEL SPEED SENSOR SUPPLY
2
B1 20DG/DB
RIGHT REAR WHEEL SPEED SENSOR SIGNAL
