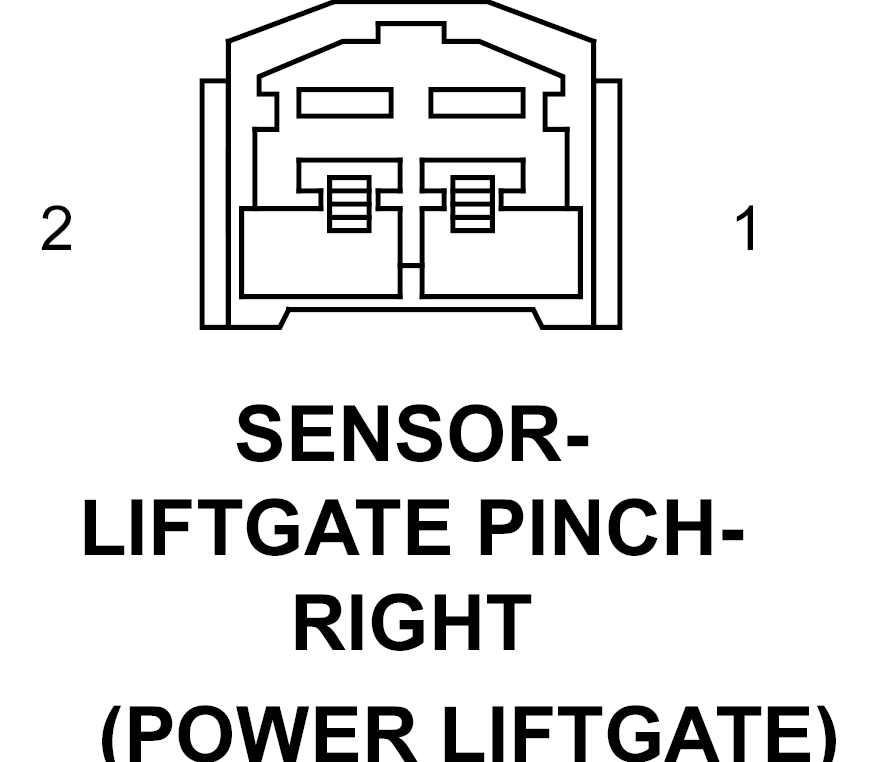

Right Liftgate Pinch Sensor (Power Liftgate) Connector End View
Right Liftgate Pinch Sensor (Power Liftgate) Connector End View
SENSOR-LIFTGATE PINCH-RIGHT - 2-WAY(POWER LIFTGATE)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Q78 20OR/DB
RIGHT PINCH SENSOR SIGNAL
2
Q901 20OR/VT
LOGIC GROUND
Courtesy of CHRYSLER CORP.
