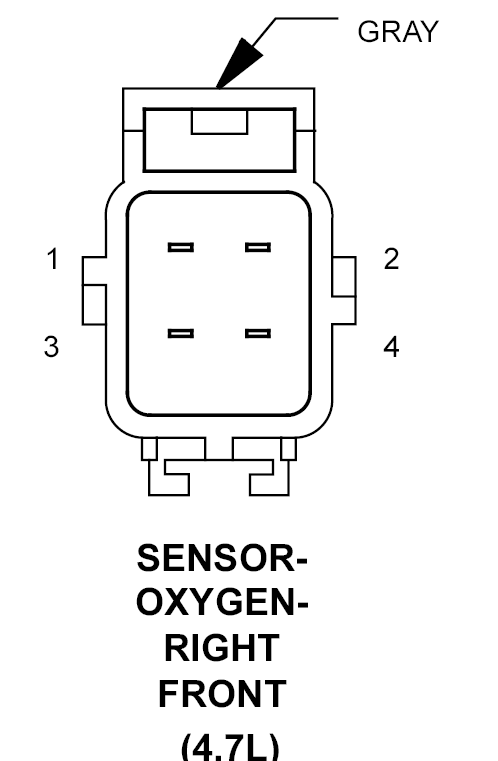

Right Front Oxygen Sensor (4.7L) Connector End View
SENSOR-OXYGEN-RIGHT FRONT - GRAY 4-WAY(4.7L)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z42 18BK/LG |
GROUND |
| 2 |
K199 20BR/VT |
O2 2/1 HEATER CONTROL |
| 3 |
K902 20BR/DG |
O2 RETURN (UPSTREAM) |
| 4 |
K43 20DB/PK |
O2 2/1 SIGNAL |
