Right Front Grab Handle Lamp Connector End View

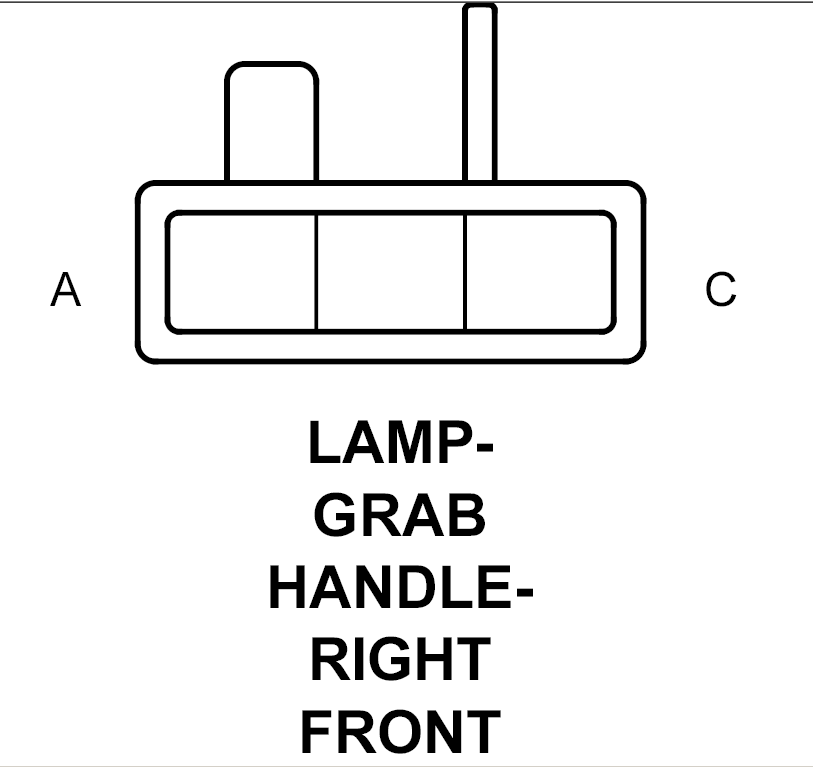

LAMP-GRAB HANDLE-RIGHT FRONT - BLACK 3-WAY

GXK780184Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
A M22 20YL/OR COURTESY LAMPS DRIVER
B A931 20RD/WT FUSED B(+)
C M28 20YL/TN GLOVE BOX/MAP LAMP DRIVER
