Right Cushion Pad Component Side Heater Connector End View

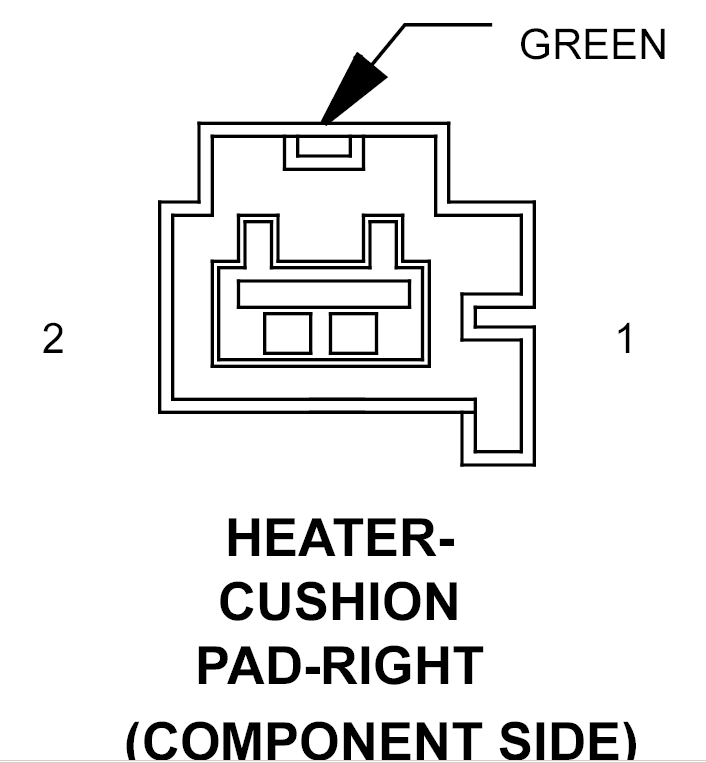

HEATER-CUSHION PAD-RIGHT - GREEN 2-WAY(COMPONENT SIDE)

GXK780147Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18YL RIGHT SEAT HEATER B(+) DRIVER
2 18YL GROUND
