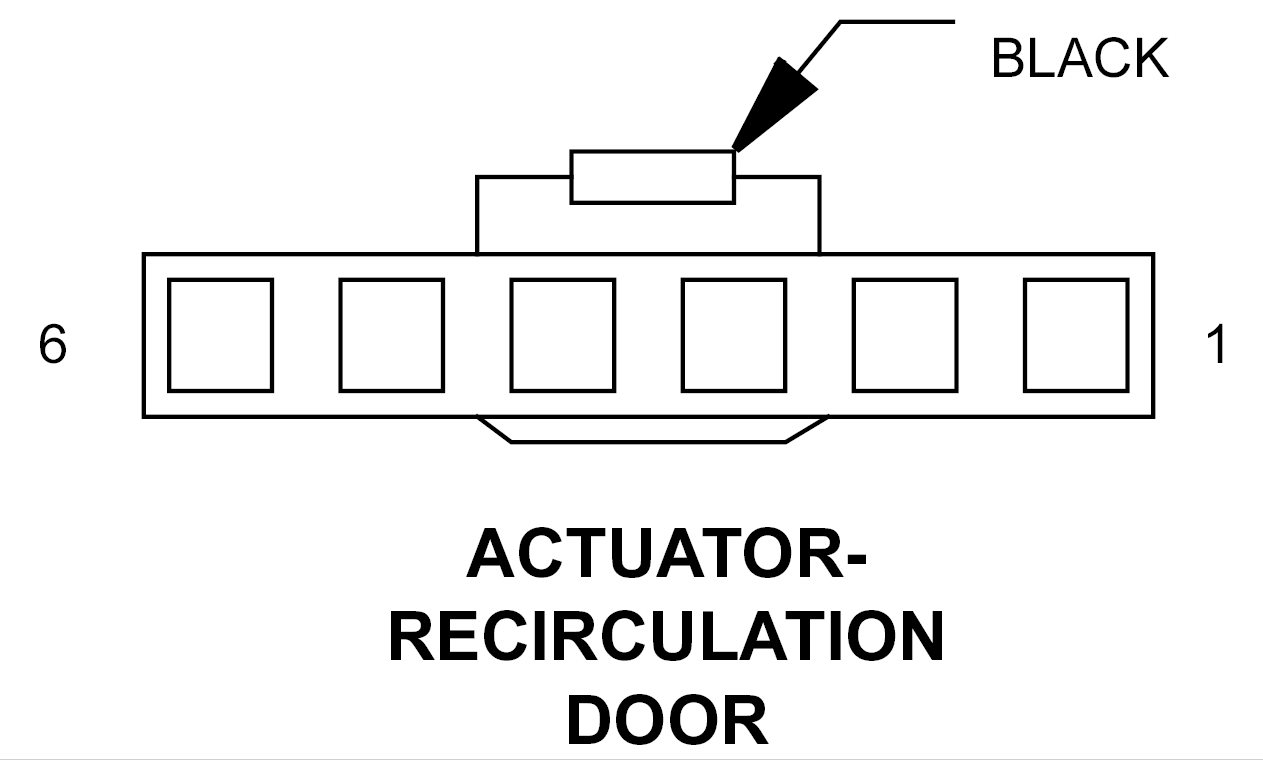

Recirculation Door Actuator Connector End View

ACTUATOR-RECIRCULATION DOOR - BLACK 6-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	-	-
3	-	-
4	-	-
5	C268 20DB/OR	RECIRCULATION DOOR DRIVER
6	C68 20DG/WT	RECIRCULATION DOOR COMMON DRIVER
