Rear Video Camera Connector End View

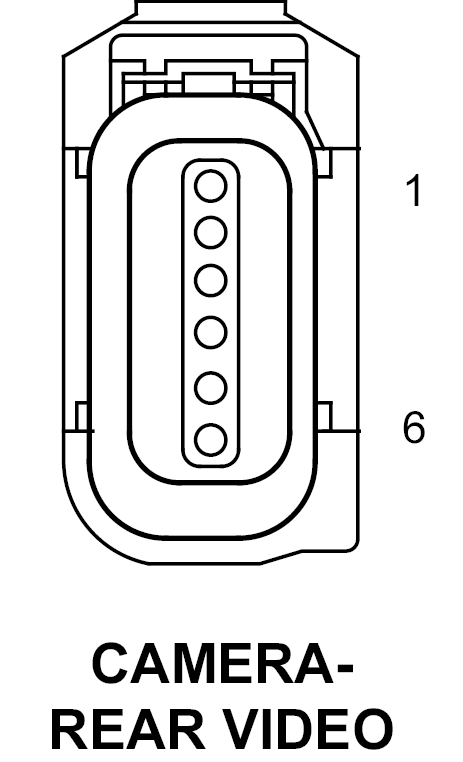

Rear Video Camera Connector End View
CAMERA-REAR VIDEO - BLACK 6-WAYFEMALE
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
-
-
2
BK
CAMERA RETURN
3
RD
CAMERA SIGNAL
4
-
-
5
LG
GROUND
6
TN
BACKUP LAMP FEED
Courtesy of CHRYSLER CORP.
