Rear Power Liftgate Switch Connector End View

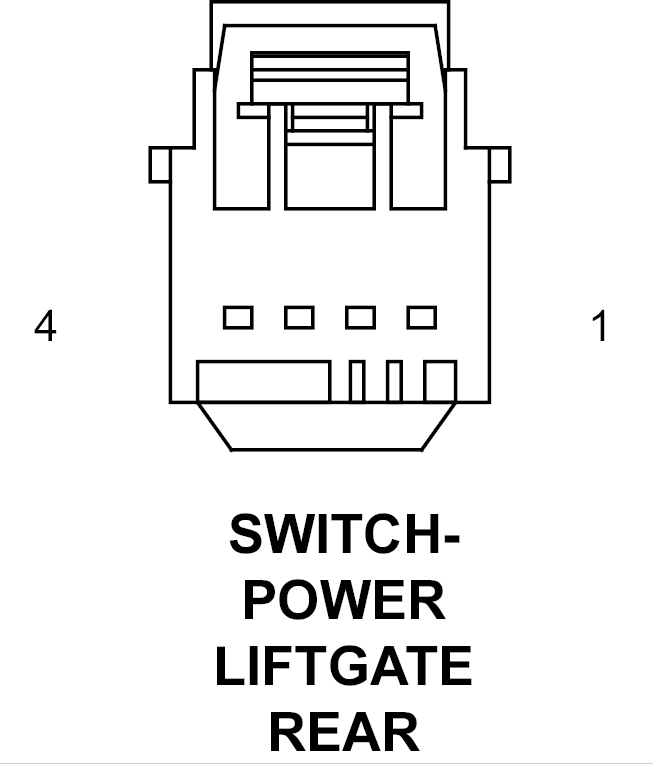

SWITCH-POWER LIFTGATE-REAR - 4-WAY

GXK780423Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 G29 20OR/VT LIFTGATE REAR SWITCH MUX
2 - -
3 - -
4 Q901 20OR/VT LOGIC GROUND
