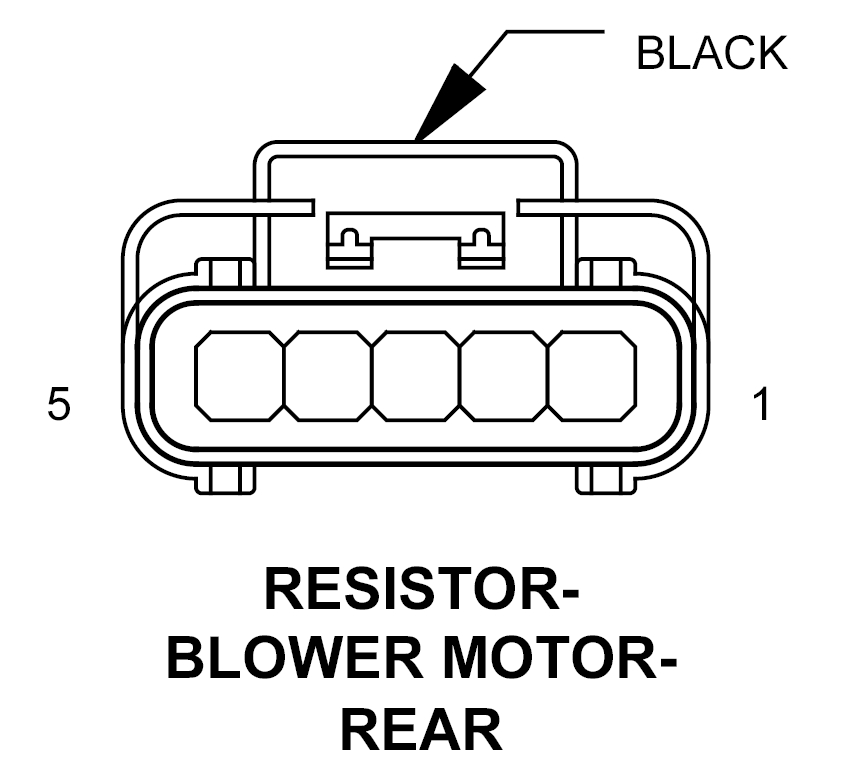

Rear Blower Motor Resistor Connector End View
RESISTOR-BLOWER MOTOR-REAR - BLACK 5-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
C951 14BK/WT |
REAR BLOWER HIGH SPEED |
| 3 |
C153 14DB/VT |
REAR BLOWER HIGH SPEED |
| 4 |
C152 16LB |
REAR BLOWER MEDIUM SPEED |
| 5 |
C151 16DB/BR |
REAR BLOWER LOW SPEED |
