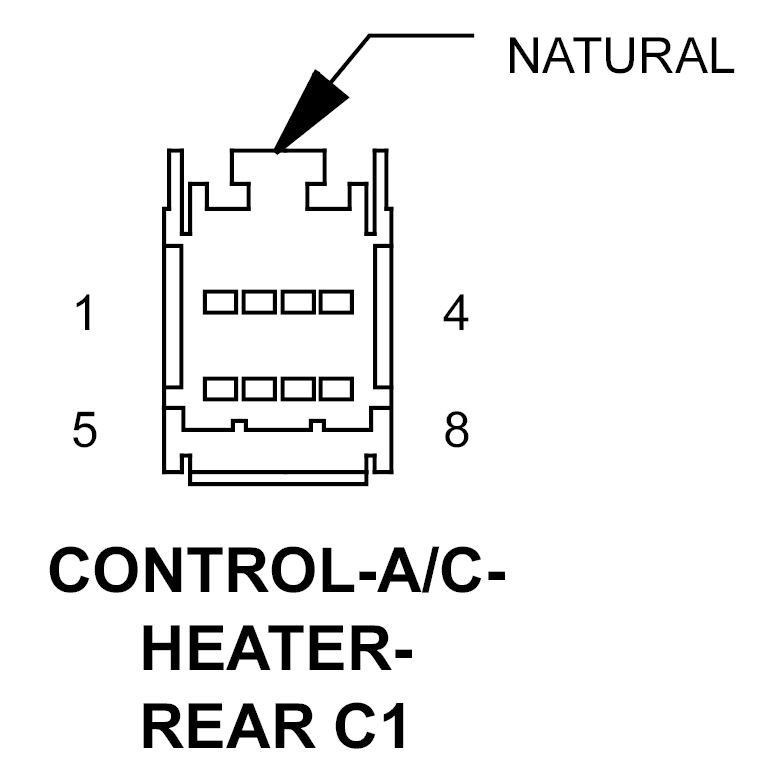

Rear A/C Heater Control Connector End View (C1)
CONTROL-A/C-HEATER-REAR C1 - NATURAL 8-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F850 20LB/PK |
FUSED RUN RELAY OUTPUT |
| 2 |
C54 20YL |
REAR BLEND DOOR CONTROL |
| 3 |
C53 20LG/BK |
REAR MODE DOOR CONTROL |
| 4 |
Z908 20BK |
GROUND |
| 5 |
E2 20OR/BR |
PANEL LAMPS DRIVER |
| 6 |
- |
- |
| 7 |
- |
- |
| 8 |
- |
- |
