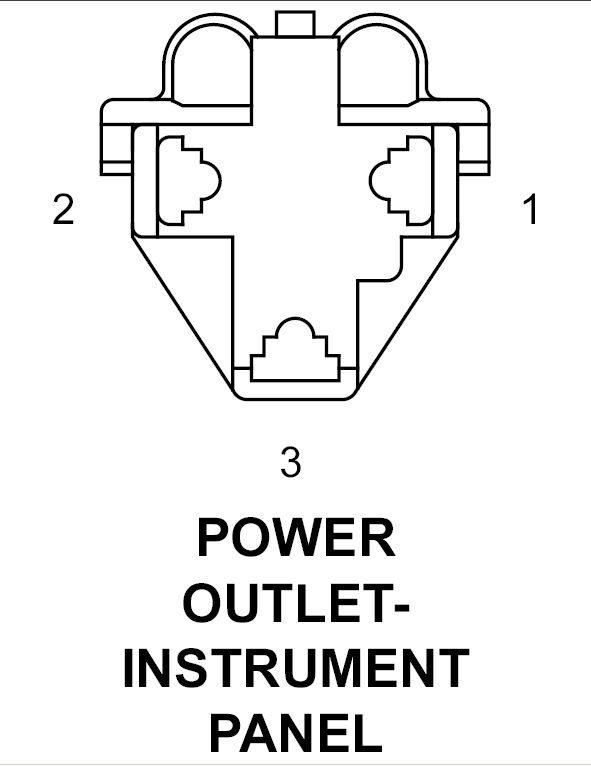

Power Instrument Panel Outlet Connector End View
Power Instrument Panel Outlet Connector End View
POWER OUTLET-INSTRUMENT PANEL - 3-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
A207 16RD/LG
FUSED POWER OUTLET RELAY OUTPUT
2
-
-
3
Z905 16BK
GROUND
Courtesy of CHRYSLER CORP.
