Power Console Outlet Connector End View

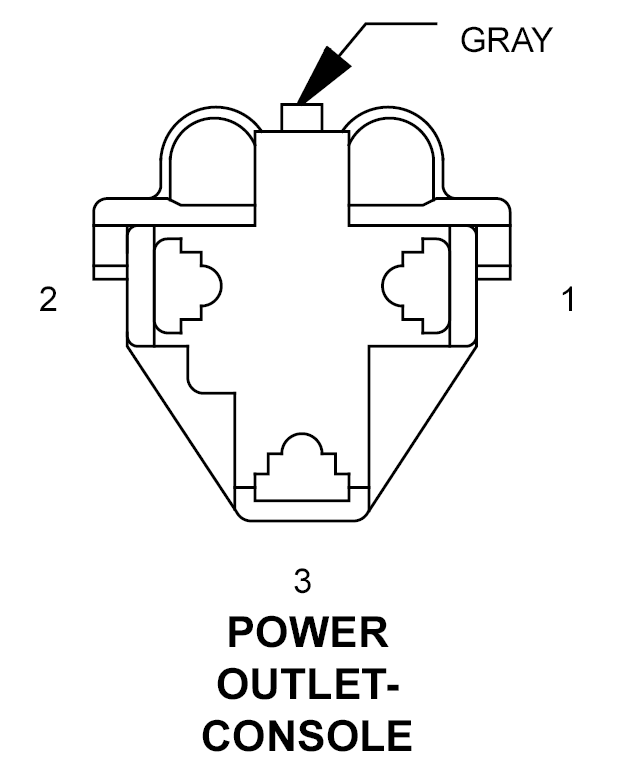

POWER OUTLET-CONSOLE - GRAY 3-WAY

GXK780294Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A405 14RD/DB FUSED B(+)
2 - -
3 Z905 16BK GROUND
