Positive Battery Connector End View

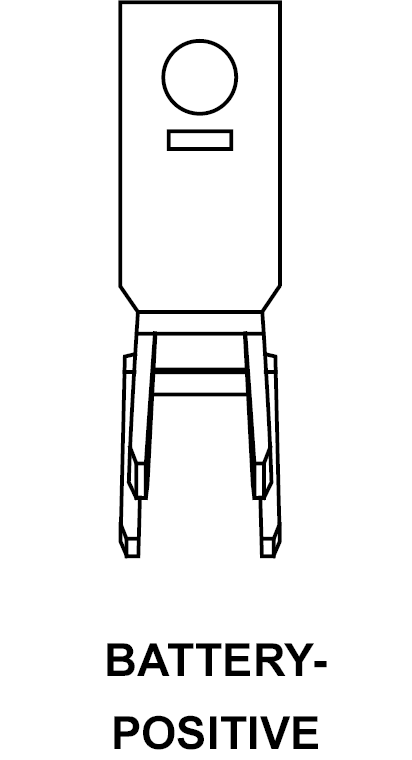

BATTERY-POSITIVE - 1-WAY

GXK780022Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A1 4RD B(+) (DIESEL)
1 A8 4RD B(+) (DIESEL)
1 A1 6RD B(+) (GAS)
1 A8 6RD B(+) (GAS)
