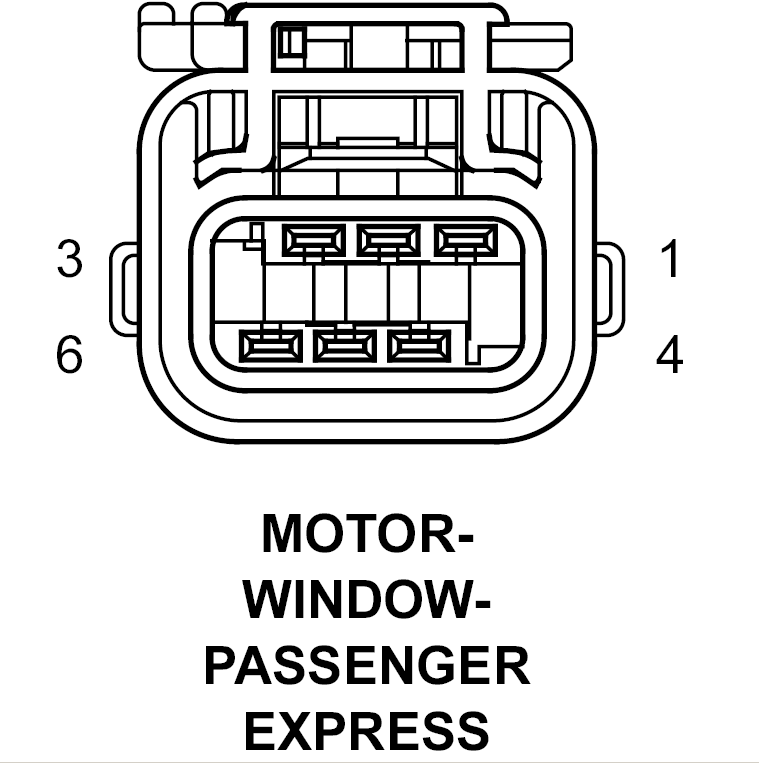

Passenger Window Express Motor Connector End View
MOTOR-WINDOW-PASSENGER EXPRESS - 6-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Q312 16DB/OR | PASSENGER WINDOW EXPRESS UP DRIVER |
| 2 | Q304 20LG/OR | PASSENGER WINDOW HALL SENSOR B SIGNAL |
| 3 | Q322 16LG/OR | PASSENGER WINDOW EXPRESS DOWN DRIVER |
| 4 | Q990 20BK/LG | PASSENGER WINDOW HALL SENSOR RETURN |
| 5 | Q306 20OR/DB | PASSENGER WINDOW HALL SENSOR SUPPLY |
| 6 | Q302 20OR/LG | PASSENGER WINDOW HALL SENSOR A SIGNAL |
