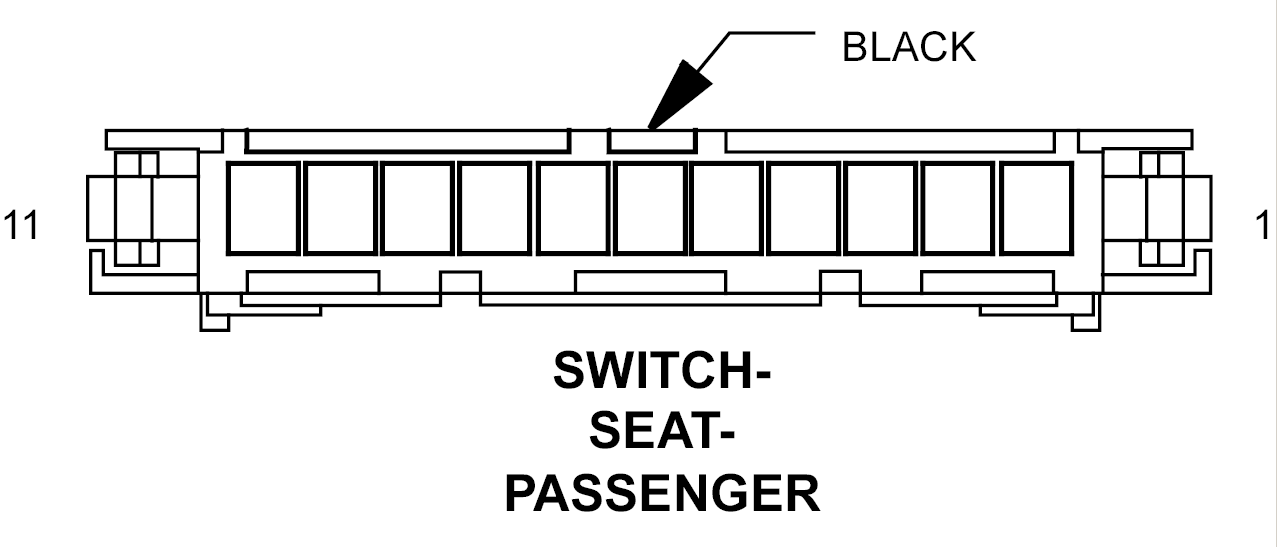

Passenger Seat Switch Connector End View
SWITCH-SEAT-PASSENGER - BLACK 11-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P42 16LG/GY | PASSENGER SEAT RECLINER SWITCH DOWN |
| 2 | - | - |
| 3 | P44 16LG/VT | PASSENGER SEAT RECLINER SWITCH UP |
| 4 | P16 16LG/WT | PASSENGER SEAT HORIZONTAL REARWARD DRIVER |
| 5 | - | - |
| 6 | A33 16BK/RD | FUSED B(+) |
| 7 | Z909 14BK | GROUND (EXCEPT HEATED SEATS) |
| 7 | Z909 16BK | GROUND (LHD HEATED SEATS) |
| 7 | Z909 16BK/OR | GROUND (RHD HEATED SEATS) |
| 8 | P14 16LG/OR | PASSENGER SEAT HORIZONTAL FORWARD DRIVER |
| 9 | - | - |
| 10 | - | - |
| 11 | - | - |
