Parking Brake Switch Connector End View

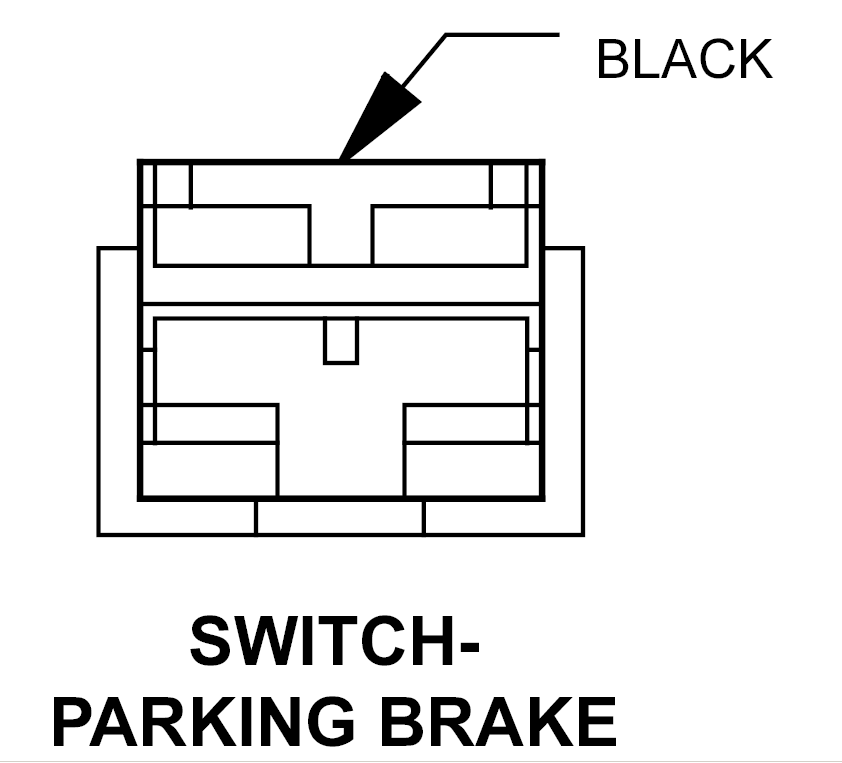

Parking Brake Switch Connector End View
SWITCH-PARKING BRAKE - BLACK 1-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
B25 20DG/WT
PARK BRAKE SWITCH SENSE
Courtesy of CHRYSLER CORP.
