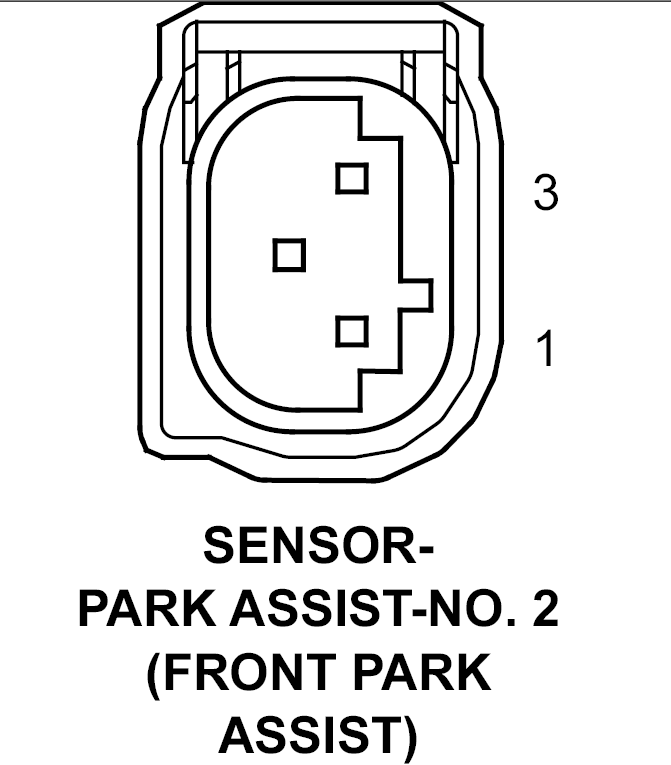

Park Assist Sensor 2 (Front Park Assist) Connector End View
SENSOR-PARK ASSIST-NO. 2 - 3-WAY(FRONT PARK ASSIST)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
D705 20WT/OR |
PARK ASSIST SENSOR NO. 2 SIGNAL |
| 2 |
Z169 20BK/LG |
GROUND |
| 3 |
X702 20GY/LB |
FRONT PARK ASSIST SENSOR SUPPLY |
