Park Assist Module (Park Assist) Connector End View (C2)

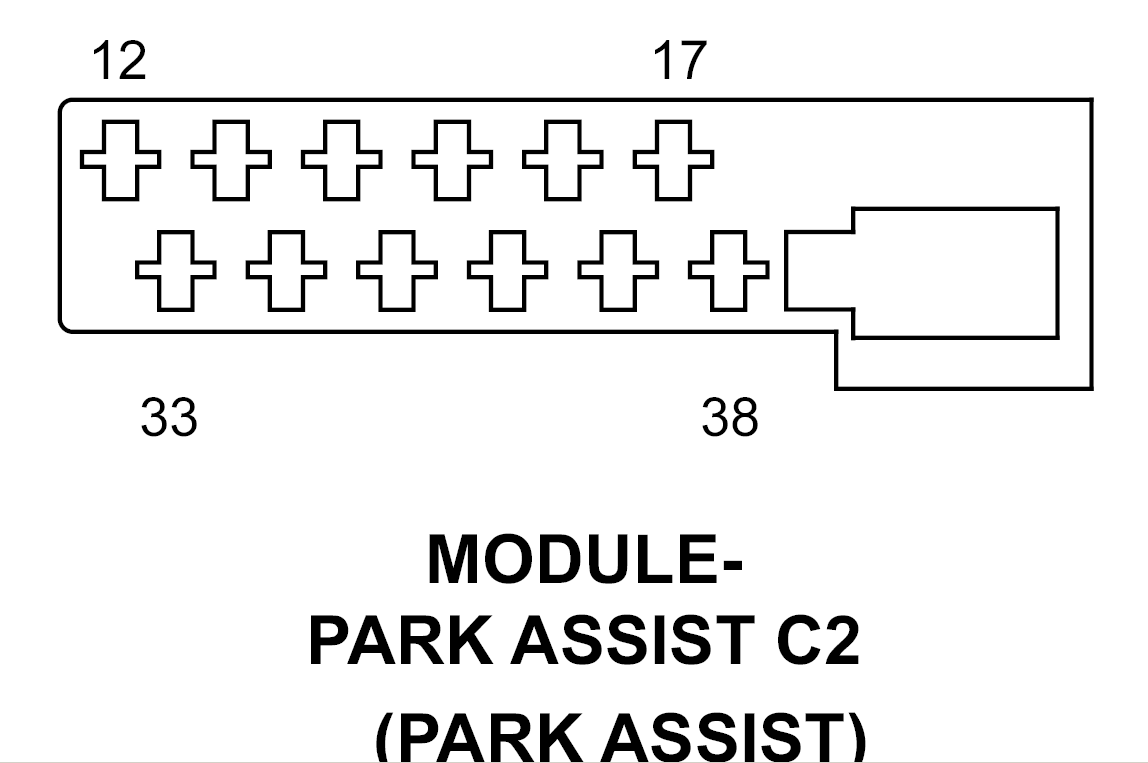

MODULE-PARK ASSIST C2 - 12-WAY(PARK ASSIST)
| CAV | CIRCUIT | FUNCTION |
| 12 | Z172 20BK/OR | GROUND |
| 13 | Z169 20BK/LG | GROUND |
| 14 | D778 20WT/VT | FRONT PARK ASSIST DISPLAY SIGNAL |
| 15 | D708 20WT/LB | PARK ASSIST SENSOR NO. 5 SIGNAL |
| 16 | D706 20WT/TN | PARK ASSIST SENSOR NO. 3 SIGNAL |
| 17 | D702 20WT/YL | PARK ASSIST SENSOR NO. 1 SIGNAL |
| 33 | X778 20GY/DB | PARK ASSIST DISPLAY SUPPLY |
| 34 | X702 20GY/LB | FRONT PARK ASSIST SENSOR SUPPLY |
| 35 | D709 20WT/BR | PARK ASSIST SENSOR NO. 6 SIGNAL |
| 36 | D707 20WT/LG | PARK ASSIST SENSOR NO. 4 SIGNAL |
| 37 | D705 20WT/OR | PARK ASSIST SENSOR NO. 2 SIGNAL |
| 38 | - | - |
