Commander Base, 4.7 P, AWD
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
Connector End Views
>>
Connector Pin-Outs
>>

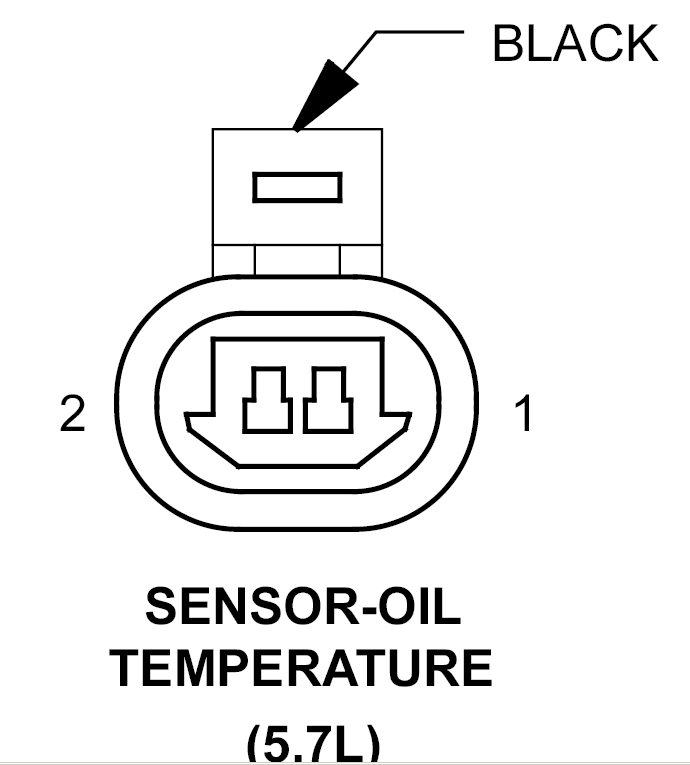

Oil Temperature Sensor (5.7L) Connector End View
Oil Temperature Sensor (5.7L) Connector End View
SENSOR-OIL TEMPERATURE - BLACK 2-WAY(5.7L)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
G224 20VT/YL
ENGINE OIL TEMPERATURE SIGNAL
2
K900 20DB/DG
SENSOR GROUND
Courtesy of CHRYSLER CORP.
