Commander Base, 4.7 P, AWD
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
Connector End Views
>>
Connector Pin-Outs
>>

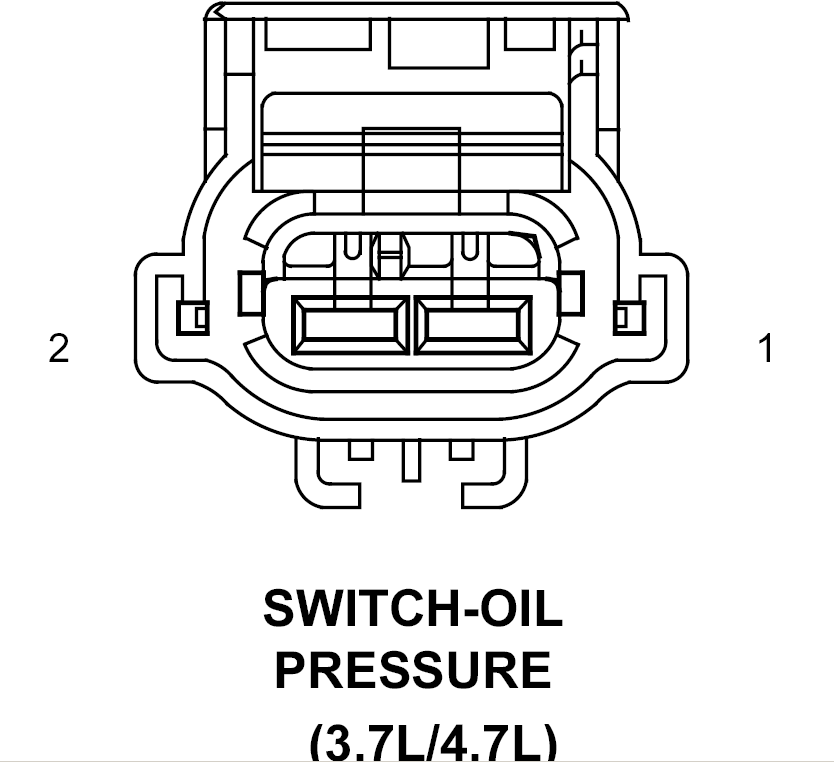

Oil Pressure Switch (3.7L/4.7L) Connector End View
Oil Pressure Switch (3.7L/4.7L) Connector End View
SWITCH-OIL PRESSURE - 2-WAY(3.7L/4.7L)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
G6 20VT/GY
ENGINE OIL PRESSURE SIGNAL
2
-
-
