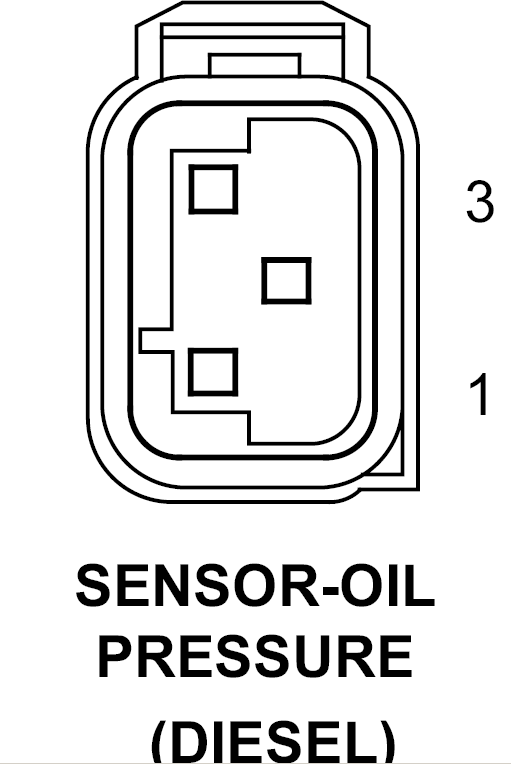

Oil Pressure Sensor (Diesel) Connector End View
SENSOR-OIL PRESSURE - 3-WAY(DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F851 20DG |
OIL PRESSURE SENSOR 5 VOLT SUPPLY |
| 2 |
G6 20BL/RD |
OIL PRESSURE SENSOR SIGNAL |
| 3 |
K936 20GY/PK |
OIL PRESSURE SENSOR GROUND |
