Oil Pressure Sensor (5.7L) Connector End View

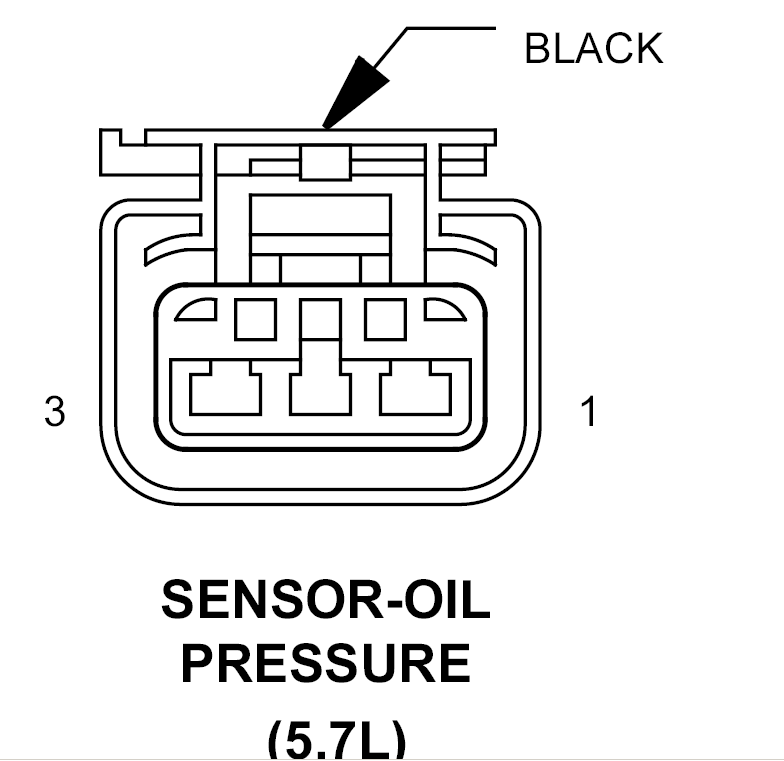

SENSOR-OIL PRESSURE - BLACK 3-WAY(5.7L)

GXK780343Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 F855 20PK/YL 5 VOLT SUPPLY
2 G6 20VT/GY ENGINE OIL PRESSURE SIGNAL
3 K900 20DB/DG SENSOR GROUND
