Negative Battery (Diesel) Connector End View

BATTERY-NEGATIVE - 1-WAY(DIESEL)

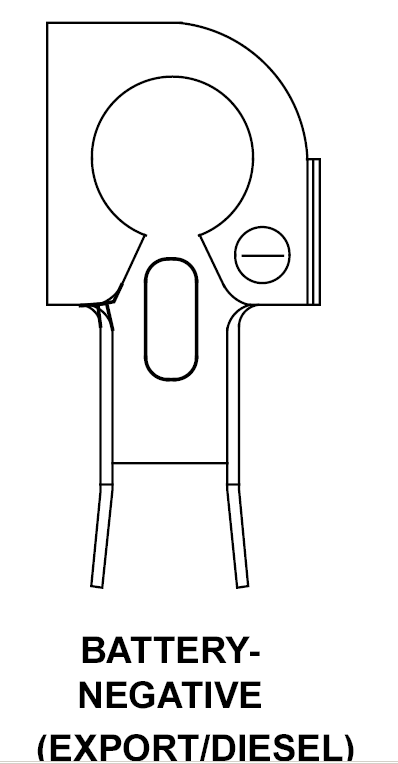

GXK780020Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z1 4BK GROUND
1 Z100 4BK/VT GROUND
