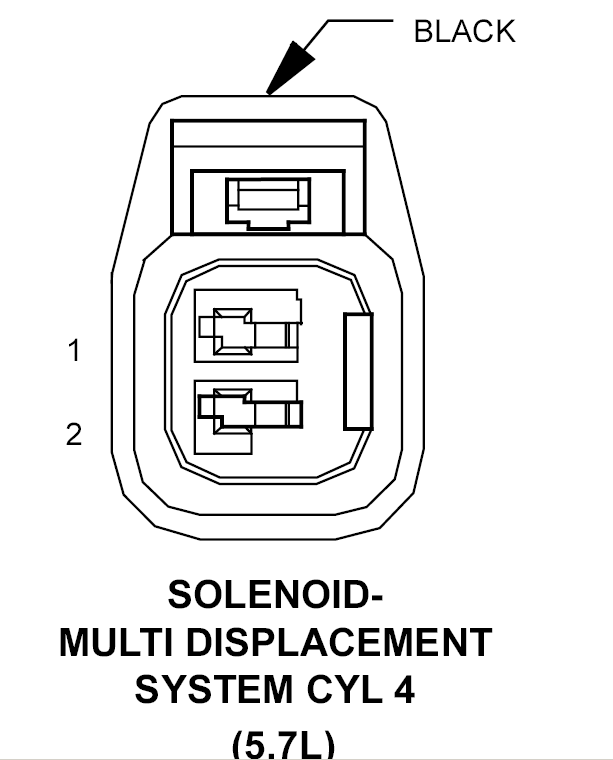

Multi Displacement System Cyl Solenoid 4 (5.7L) Connector End View

SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 4 - BLACK 2-WAY(5.7L)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K452 20BR/LB	MDS SOL CONTROL NO. 4
2	Z42 20BK/LG	GROUND
