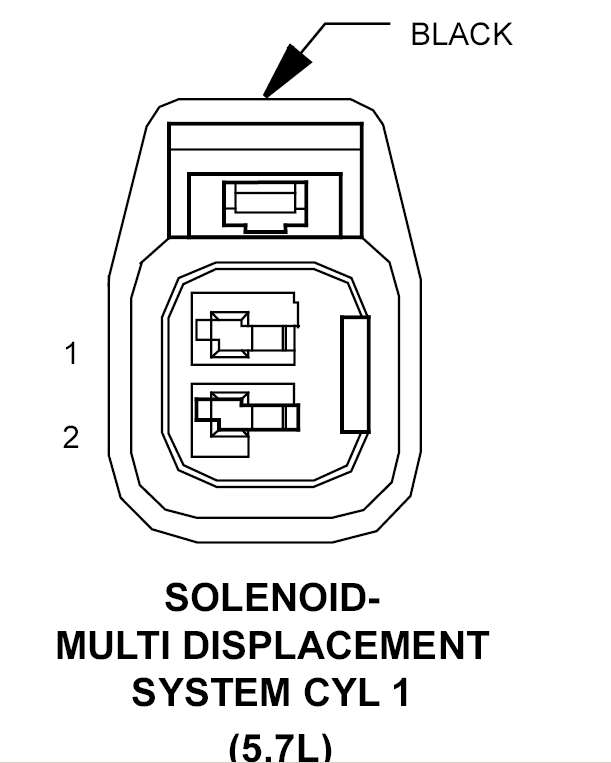

Multi Displacement System Cyl Solenoid 1 (5.7L) Connector End View

SOLENOID-MULTI DISPLACEMENT SYSTEM CYL 1 - BLACK 2-WAY(5.7L)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K451 20BR/WT	MDS SOL CONTROL NO. 1
2	Z42 20BK/LG	GROUND
