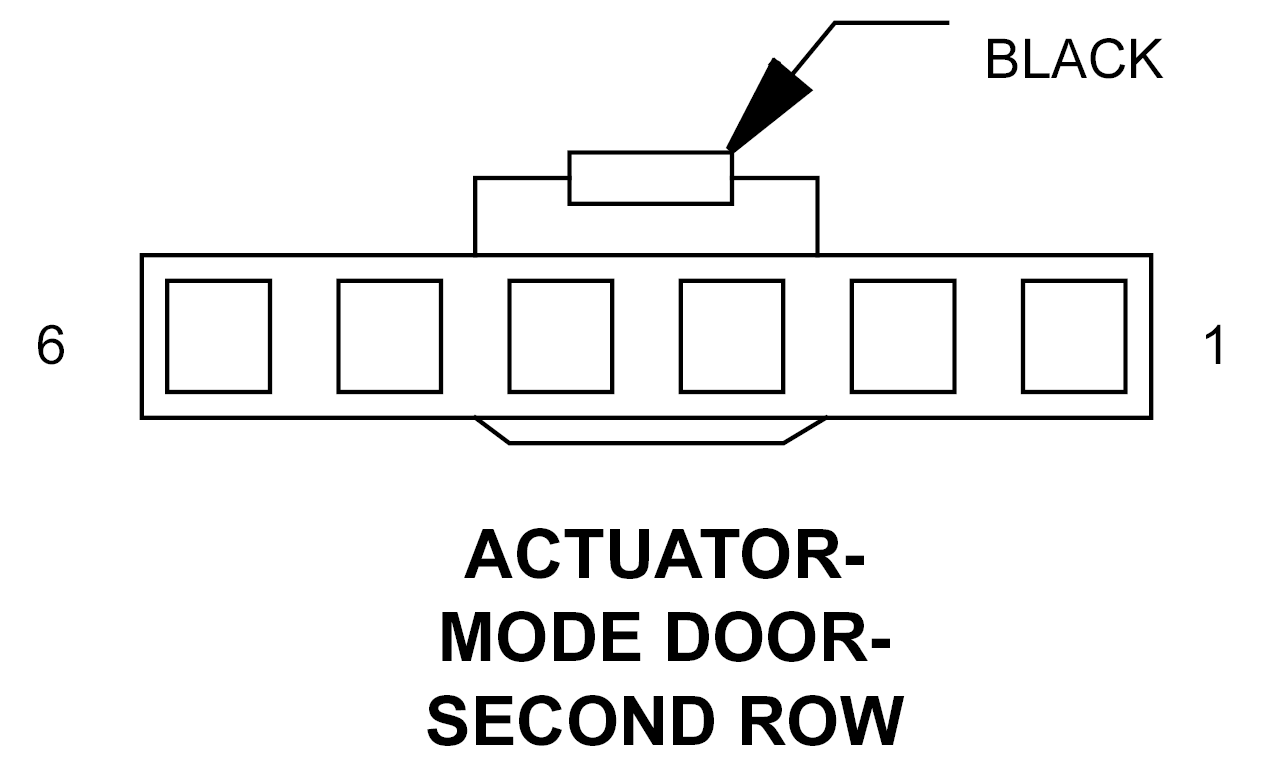

Mode Door Second Row Actuator Connector End View
ACTUATOR-MODE DOOR-SECOND ROW - BLACK 6-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
C139 20WT/BR |
SECOND ROW MODE DOOR DRIVER |
| 6 |
C939 20BR/PK |
SECOND ROW MODE DOOR COMMON DRIVER |
