Media Monitor/DVD DVD System Connector End View (C2)

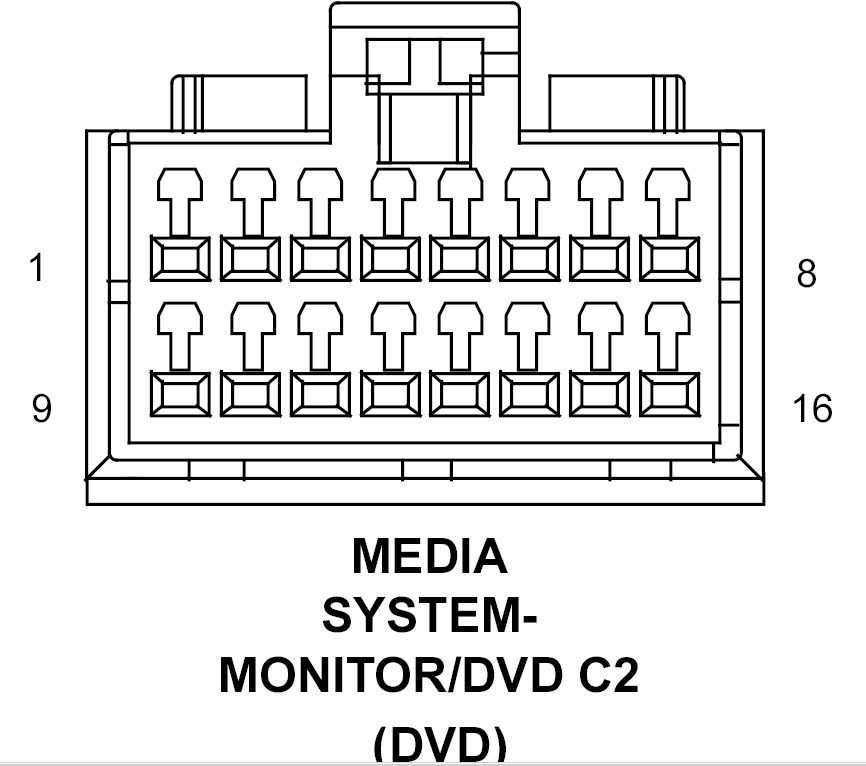

MEDIA SYSTEM-MONITOR/DVD C2 - 16-WAY(DVD)
| CAV | CIRCUIT | FUNCTION |
| 1 | X114 20GY/TN | FUSED B(+) |
| 2 | X523 20GY/LB | REMOTE CONTROL FUNCTION 1 |
| 3 | D91 20WT/DB | BMM1 ADDRESS BUS |
| 4 | - | - |
| 5 | X965 20GY/BR | I/R AUDIO LEFT |
| 6 | - | - |
| 7 | X915 20GY/LB | VIDEO RETURN |
| 8 | X515 20GY/OR | VIDEO SIGNAL |
| 9 | Z915 20BK | GROUND |
| 10 | X524 20GY/YL | REMOTE CONTROL FUNCTION 2 |
| 11 | D92 20WT | BMM2 ADDRESS BUS |
| 12 | X555 20VT/OR | VIDEO PLAY SIGNAL |
| 13 | X964 20GY/WT | I/R AUDIO RIGHT |
| 14 | X969 20GY/DB | I/R AUDIO RETURN |
| 15 | - | - |
| 16 | - | - |
