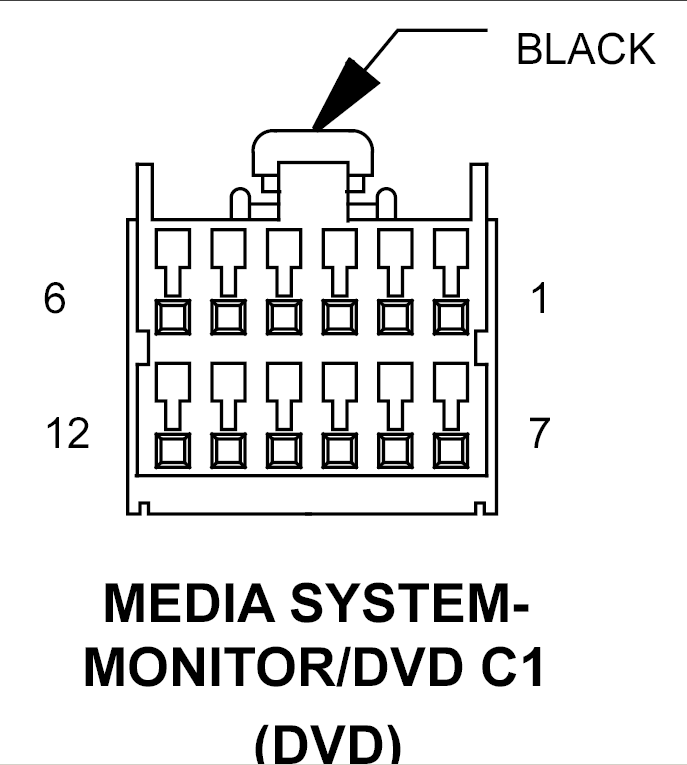

Media Monitor/DVD DVD System Connector End View (C1)
MEDIA SYSTEM-MONITOR/DVD C1 - BLACK 12-WAY(DVD)
| CAV | CIRCUIT | FUNCTION |
| 1 | X510 20DG/LB | DVD AUDIO RIGHT (+) |
| 2 | X926 20GY/OR | AUX AUDIO COMMON |
| 3 | X521 20GY/LB | AUX AUDIO LEFT (+) |
| 4 | - | - |
| 5 | - | - |
| 6 | A114 20GY/RD | FUSED B(+) |
| 7 | X511 20GY/LG | DVD AUDIO LEFT (+) |
| 8 | X910 20GY/DG | AUX AUDIO RETURN/COMMON |
| 9 | X522 20GY/DB | AUX AUDIO RIGHT (+) |
| 10 | D55 20WT/OR | CAN B BUS (+) |
| 11 | D54 20WT | CAN B BUS (-) |
| 12 | Z915 20BK | GROUND |
