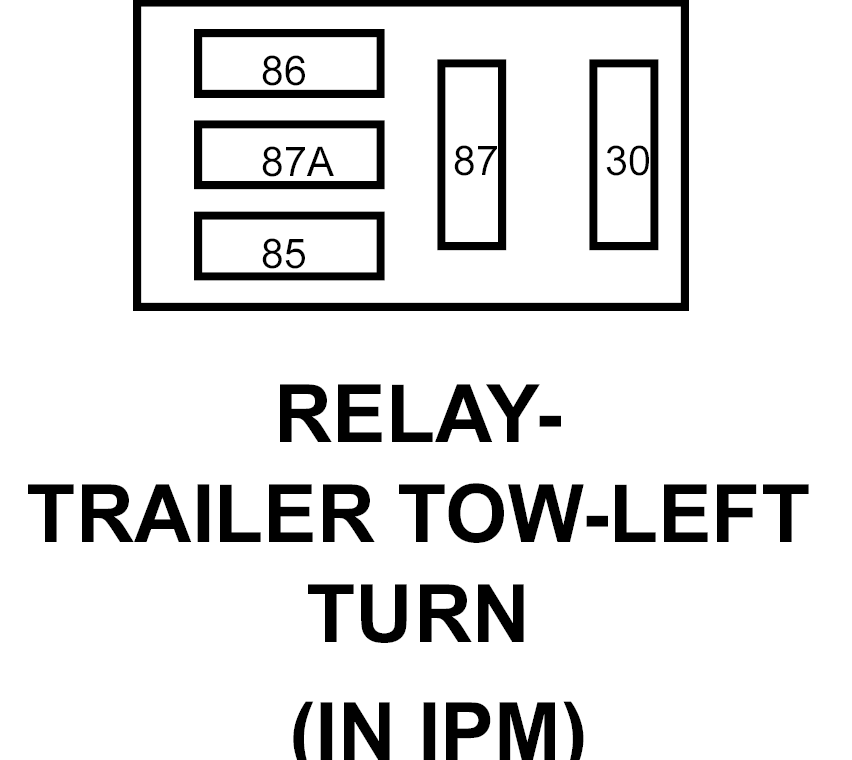

Left Trailer Tow Turn Relay Connector End View
RELAY-TRAILER TOW-LEFT TURN - 0-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A919 18RD |
FUSED B(+) |
| 85 |
L655 20WT/OR |
LEFT TRAILER TOW BRAKE LAMP RELAY CONTROL |
| 86 |
A919 18RD |
FUSED B(+) |
| 87 |
L615 18WT/YL |
TRAILER TOW LEFT STOP/TURN SIGNAL |
| 87A |
- |
- |
