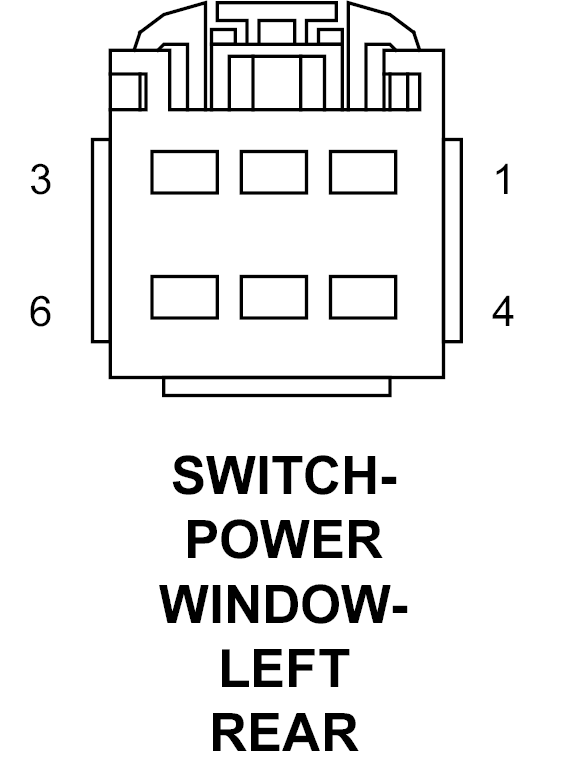

Left Rear Power Window Switch Connector End View
SWITCH-POWER WINDOW-LEFT REAR - 6-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Q611 16OR/GY | MASTER WINDOW SWITCH LEFT REAR (DOWN) |
| 2 | Q211 16TN/LB | LEFT REAR WINDOW DRIVER (DOWN) |
| 3 | Q111 16TN/YL | LEFT REAR WINDOW DRIVER (UP) |
| 4 | Q411 16OR/WT | MASTER WINDOW SWITCH LEFT REAR (UP) |
| 5 | - | - |
| 6 | Q15 16OR/LB | WINDOW LOCK OUT SWITCH OUTPUT |
