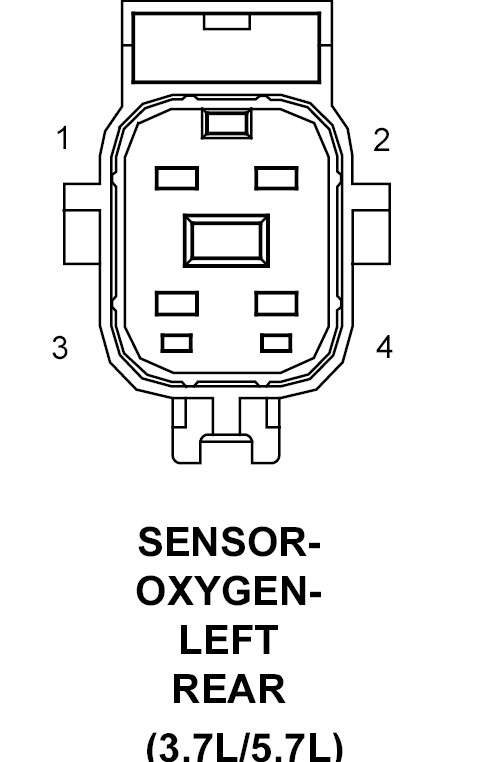

Left Rear Oxygen Sensor (3.7L/5.7L) Connector End View
SENSOR-OXYGEN-LEFT REAR - 4-WAY(3.7L/5.7L)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z42 18BK/LG |
GROUND |
| 2 |
K299 20BR/OR |
O2 1/2 HEATER CONTROL |
| 3 |
K904 20DB/WT |
O2 RETURN (DOWNSTREAM) |
| 4 |
K141 20DB/YL |
O2 1/2 SIGNAL |
