Left Liftgate Pinch Sensor (Power Liftgate) Connector End View
Left Liftgate Pinch Sensor (Power Liftgate) Connector End View

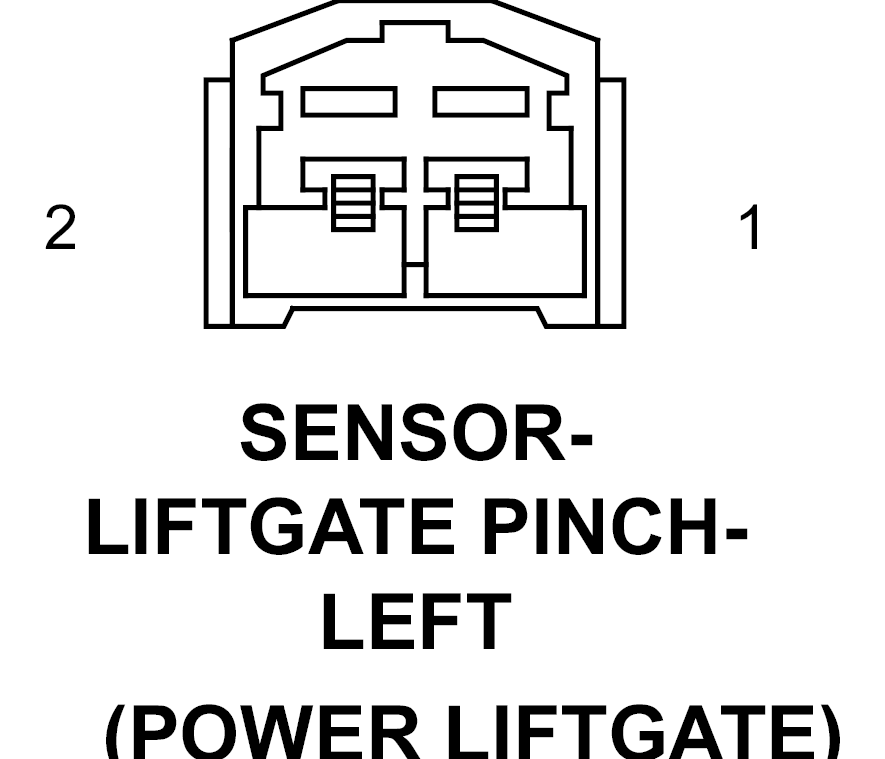

SENSOR-LIFTGATE PINCH-LEFT - 2-WAY(POWER LIFTGATE)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Q75 20OR/LB
LEFT PINCH SENSOR SIGNAL
2
Q901 20OR/VT
LOGIC GROUND
Courtesy of CHRYSLER CORP.
