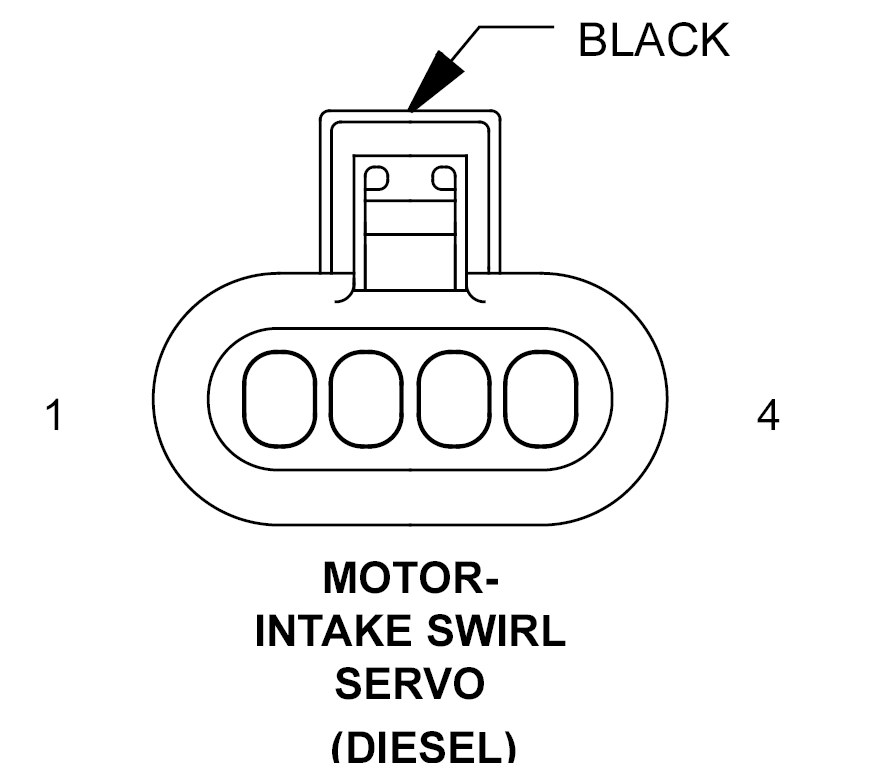

Intake Swirl Servo Motor (Diesel) Connector End View
MOTOR-INTAKE SWIRL SERVO - BLACK 4-WAY(DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z42 18BR |
GROUND |
| 2 |
A15 18RD/DG |
FUSED ASD RELAY OUTPUT |
| 3 |
N117 20GY |
INTAKE SWIRL SERVO MOTOR CONTROL |
| 4 |
- |
- |
