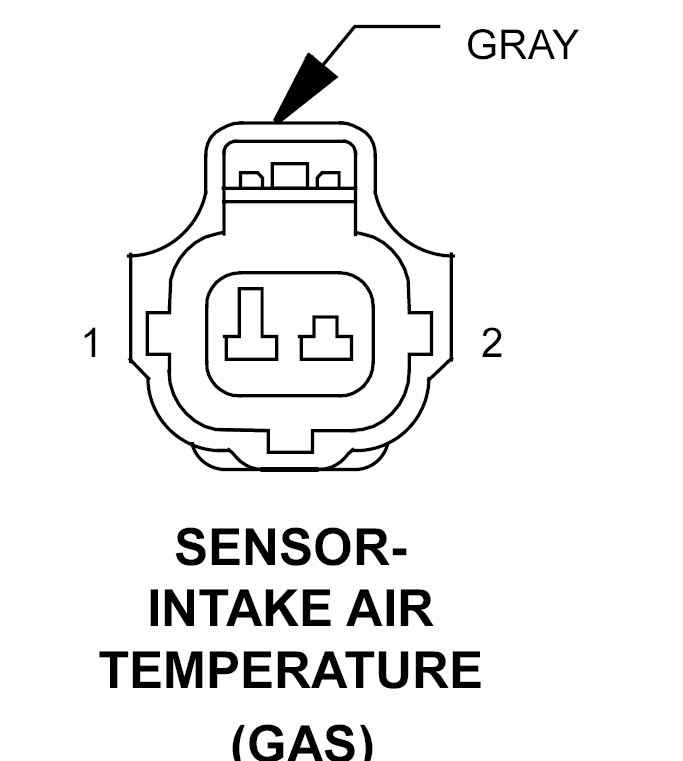

Intake Air Temperature Sensor (Gas) Connector End View
Intake Air Temperature Sensor (Gas) Connector End View
SENSOR-INTAKE AIR TEMPERATURE - GRAY 2-WAY(GAS)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K21 20BR/WT
IAT SIGNAL
2
K900 20DB/DG
SENSOR GROUND
Courtesy of CHRYSLER CORP.
