Inline Connector End View (C321 )

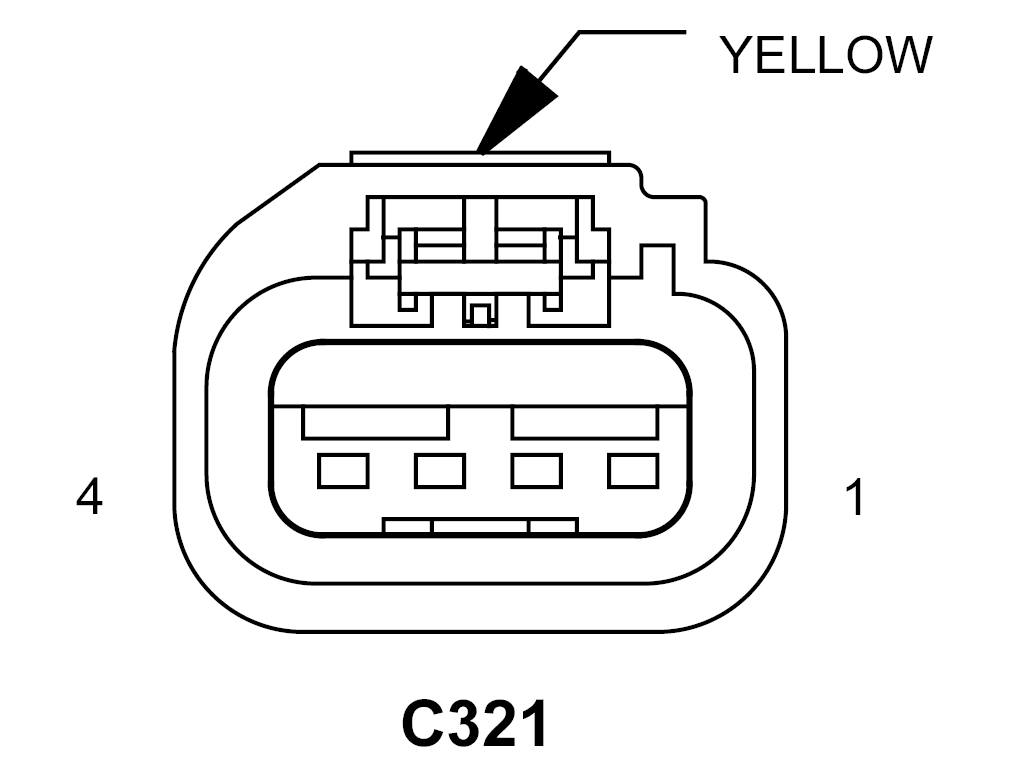

C321 - YELLOW 4-WAYFEMALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R55 20LG/DG |
DRIVER SEAT BELT TENSIONER LINE 1 |
| 2 |
R53 20LG/YL |
DRIVER SEAT BELT TENSIONER LINE 2 |
| 3 |
Z911 20BK |
GROUND |
| 4 |
G10 20VT/LG |
DRIVER SEAT BELT SWITCH SENSE |

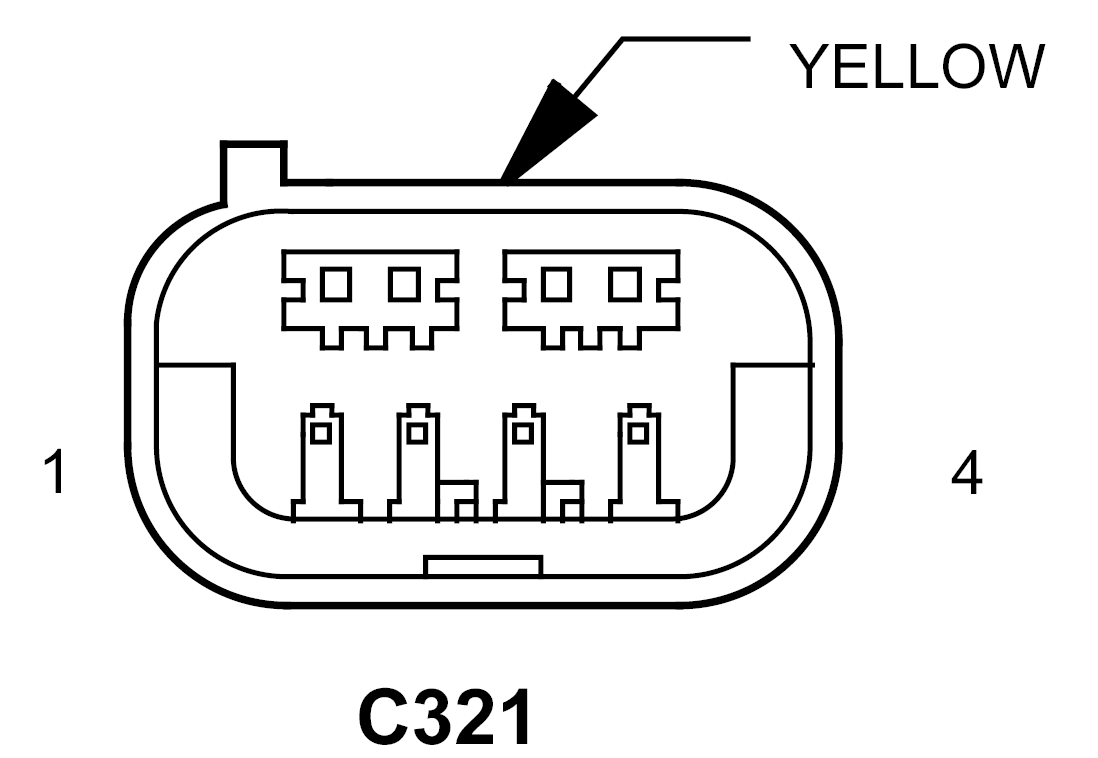

C321 - YELLOW 4-WAYMALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R55 10LG/DG |
DRIVER SEAT BELT TENSIONER LINE 1 |
| 2 |
R53 20LG/YL |
DRIVER SEAT BELT TENSIONER LINE 2 |
| 3 |
Z911 20BK |
GROUND |
| 4 |
G10 20VT/LG |
DRIVER SEAT BELT SWITCH SENSE |
