Inline Connector End View (C319 )

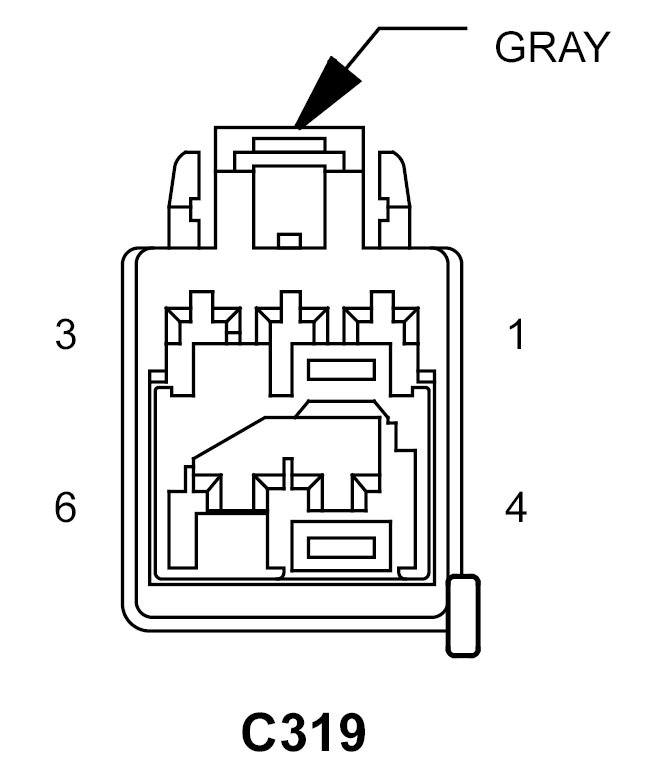

C319 - GRAY 6-WAYFEMALE

GXK780081Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 P42 16LG/GY PASSENGER SEAT RECLINER SWITCH DOWN
2 P44 16LG/VT PASSENGER SEAT RECLINER SWITCH UP
3 - -
4 - -
5 P188 16LG/VT RIGHT SEAT HEATER B(+) DRIVER (HEATED SEATS)
6 Z909 16BK GROUND (HEATED SEATS)


C319 - GRAY 6-WAYMALE

GXK780082Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 P42 16LG/GY PASSENGER SEAT RECLINER SWITCH DOWN
2 P44 16LG/VT PASSENGER SEAT RECLINER SWITCH UP
3 - -
4 - -
5 P188 16LG/VT RIGHT SEAT HEATER B(+) DRIVER (HEATED SEATS)
6 Z909 16BK GROUND (HEATED SEATS)
