Inline Connector End View (C306 )

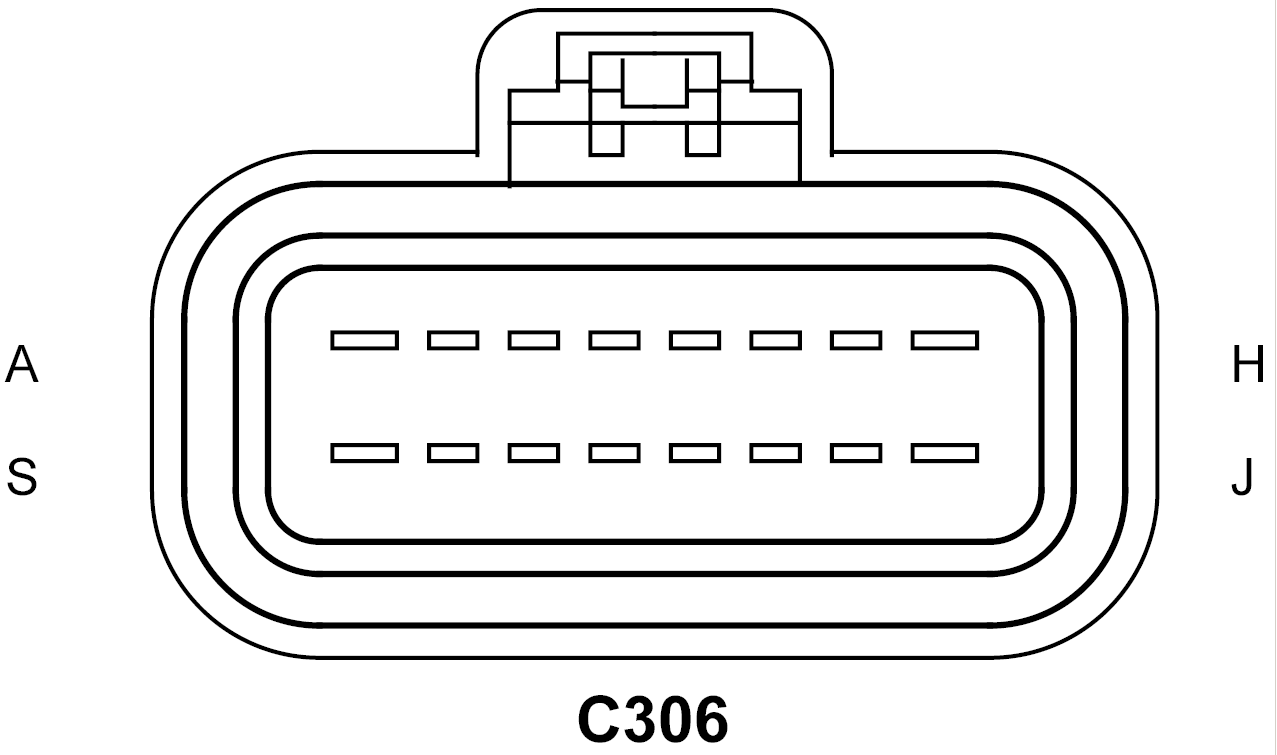

C306 - 16-WAYFEMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
A	A33 16RD/YL	FUSED B(+)
B	-	-
C	G12 20VT/BR	ADJUSTABLE PEDALS SENSOR SIGNAL
D	P206 16LG/TN	ADJUSTABLE PEDALS MOTOR REARWARD
E	P205 16LG/DB	ADJUSTABLE PEDALS MOTOR FORWARD
F	G912 20VT/WT	ADJUSTABLE PEDALS SENSOR RETURN
G	G11 20VT/TN	ADJUSTABLE PEDALS SENSOR SUPPLY
H	Z911 14BK	GROUND
J	P187 18LG/BR	LEFT SEAT HEATER B(+) DRIVER
K	D54 20WT	CAN B BUS (-)
L	D55 20WT/OR	CAN B BUS (+)
M	Q101 20OR/LB	ADJUSTABLE PEDALS SWITCH GROUND
N	Q102 20OR/DB	ADJUSTABLE PEDALS SWITCH FORWARD
P	Q103 20OR/LG	ADJUSTABLE PEDALS SWITCH REARWARD
R	-	-
S	-	-

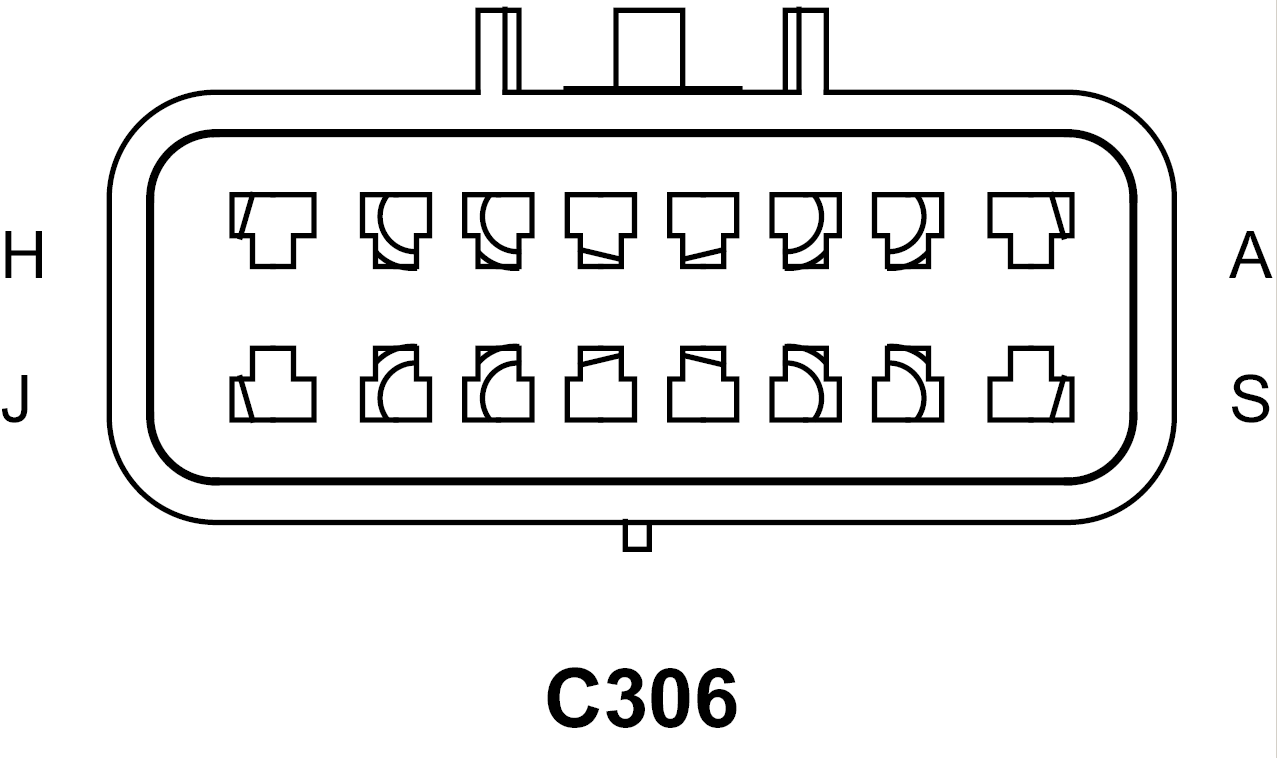

C306 - 16-WAYMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
A	A33 16RD/YL	FUSED B(+)
C	G12 20VT/BR	ADJUSTABLE PEDALS SENSOR SIGNAL (MEMORY)
D	P206 16LG/TN	ADJUSTABLE PEDALS MOTOR REARWARD (MEMORY)
E	P205 16LG/DB	ADJUSTABLE PEDALS MOTOR FORWARD (MEMORY)
F	G912 20VT/WT	ADJUSTABLE PEDALS SENSOR RETURN (MEMORY)
G	G11 20VT/TN	ADJUSTABLE PEDALS SENSOR SUPPLY (MEMORY)
H	Z911 14BK	GROUND
J	-	-
J	P187 16LG/BR	LEFT SEAT HEATER B(+) DRIVER (HEATED SEATS)
K	D54 20WT	CAN B BUS (-) (MEMORY/HEATED SEATS)
L	D55 20WT/OR	CAN B BUS (+) (MEMORY/HEATED SEATS)
M	Q101 20OR/LB	ADJUSTABLE PEDALS SWITCH GROUND (MEMORY)
N	Q102 20OR/DB	ADJUSTABLE PEDALS SWITCH FORWARD (MEMORY)
P	Q103 20OR/LG	ADJUSTABLE PEDALS SWITCH REARWARD (MEMORY)
R	-	-
S	-	-
