Inline Connector End View (C105 )

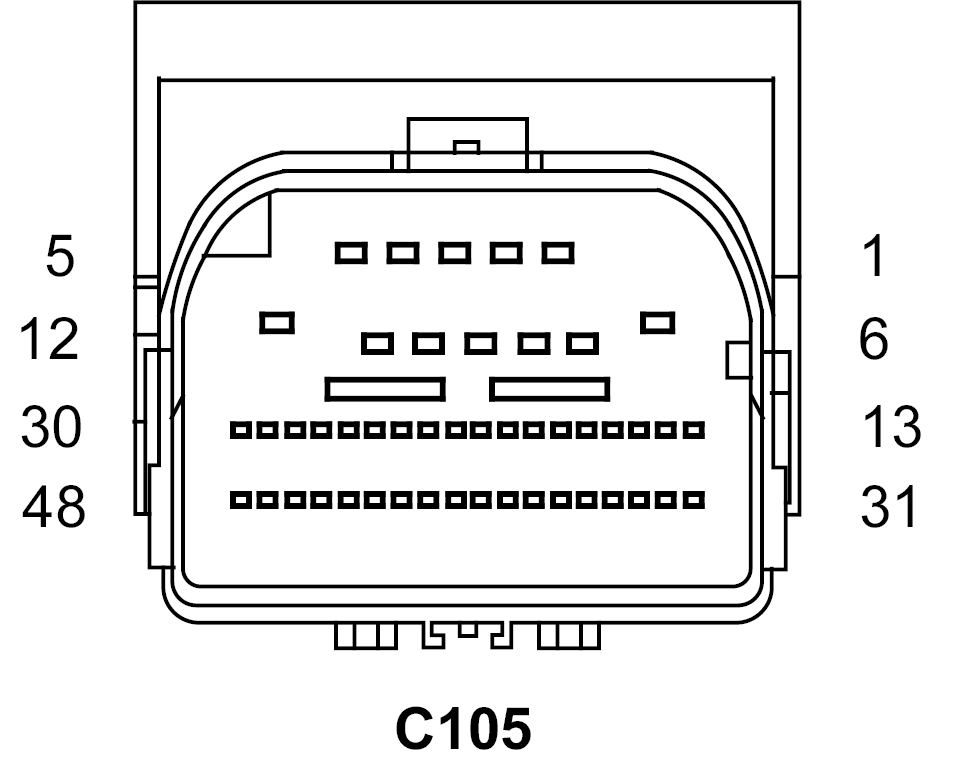

C105 - 48-WAYFEMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	F924 20PK/YL	FUSED RUN RELAY OUTPUT (TIRE PRESSURE MONITOR)
2	D508 20WT/TN	COM-LIN TIRE PRESSURE MONITOR LAN (TIRE PRESSURE MONITOR)
3	-	-
4	-	-
5	F921 20PK/GY	FUSED RUN RELAY OUTPUT
6	B400 14DG	TRAILER TOW ELECTRIC BRAKE OUTPUT
7	L76 18WT/BR	FUSED PARK LAMP RELAY OUTPUT
8	-	-
9	K504 20BR	DRIVETRAIN 5 VOLT SUPPLY (4WD)
10	D54 20WT	CAN B BUS (-)
11	D55 20WT/OR	CAN B BUS (+)
12	A930 14RD/YL	POWER OUTLET RELAY OUTPUT
12	A930 14RD	POWER OUTLET RELAY OUTPUT
13	F941 20PK/LG	FUSED IGNITION SWITCH OUTPUT (RUN-START)
14	L1 18WT/LG	BACKUP LAMP FEED
15	N4 20DB/YL	FUEL LEVEL SENSOR NO. 1 SIGNAL
16	L62 18WT/OR	RIGHT REAR TURN SIGNAL CONTROL
17	L63 18WT/DG	LEFT REAR TURN SIGNAL CONTROL
18	L777 20WT/BR	FUSED PARK LAMP RELAY OUTPUT
19	L778 20WT/DB	FUSED PARK LAMP RELAY OUTPUT
20	B3 18DG/YL	LEFT REAR WHEEL SPEED SENSOR SIGNAL
21	B4 18LG/YL	LEFT REAR WHEEL SPEED SENSOR SUPPLY
21	B4 18LG/GY	LEFT REAR WHEEL SPEED SENSOR SUPPLY
22	A909 14RD	FUSED B(+)
23	K107 20VT/WT	ESM SIGNAL
24	A109 16OR/RD	FUEL PUMP RELAY OUTPUT
25	L614 18WT/DB	TRAILER TOW RIGHT STOP/TURN SIGNAL
26	L615 18WT/YL	TRAILER TOW LEFT STOP/TURN SIGNAL
27	L50 18WT/TN	BRAKE LAMP SWITCH OUTPUT
28	B1 18DG/DB	RIGHT REAR WHEEL SPEED SENSOR SIGNAL
29	B2 18DG/LB	RIGHT REAR WHEEL SPEED SENSOR SUPPLY
30	-	-
31	-	-
32	-	-
33	-	-
34	-	-
35	-	-
36	-	-
37	-	-
38	-	-
39	-	-
40	-	-
41	-	-
42	K977 20BR/LB	MODE SELECT (4WD)
43	Z210 20BK	GROUND
44	D64 20WT/LB	CAN C BUS (-) (4WD)
45	D65 20WT/LG	CAN C BUS (+) (4WD)
46	G95 20VT/WT	4WD NEUTRAL INDICATOR (4WD)
47	A926 18RD/TN	FUSED B(+)
48	A927 18RD/BR	FUSED B(+) (4WD)

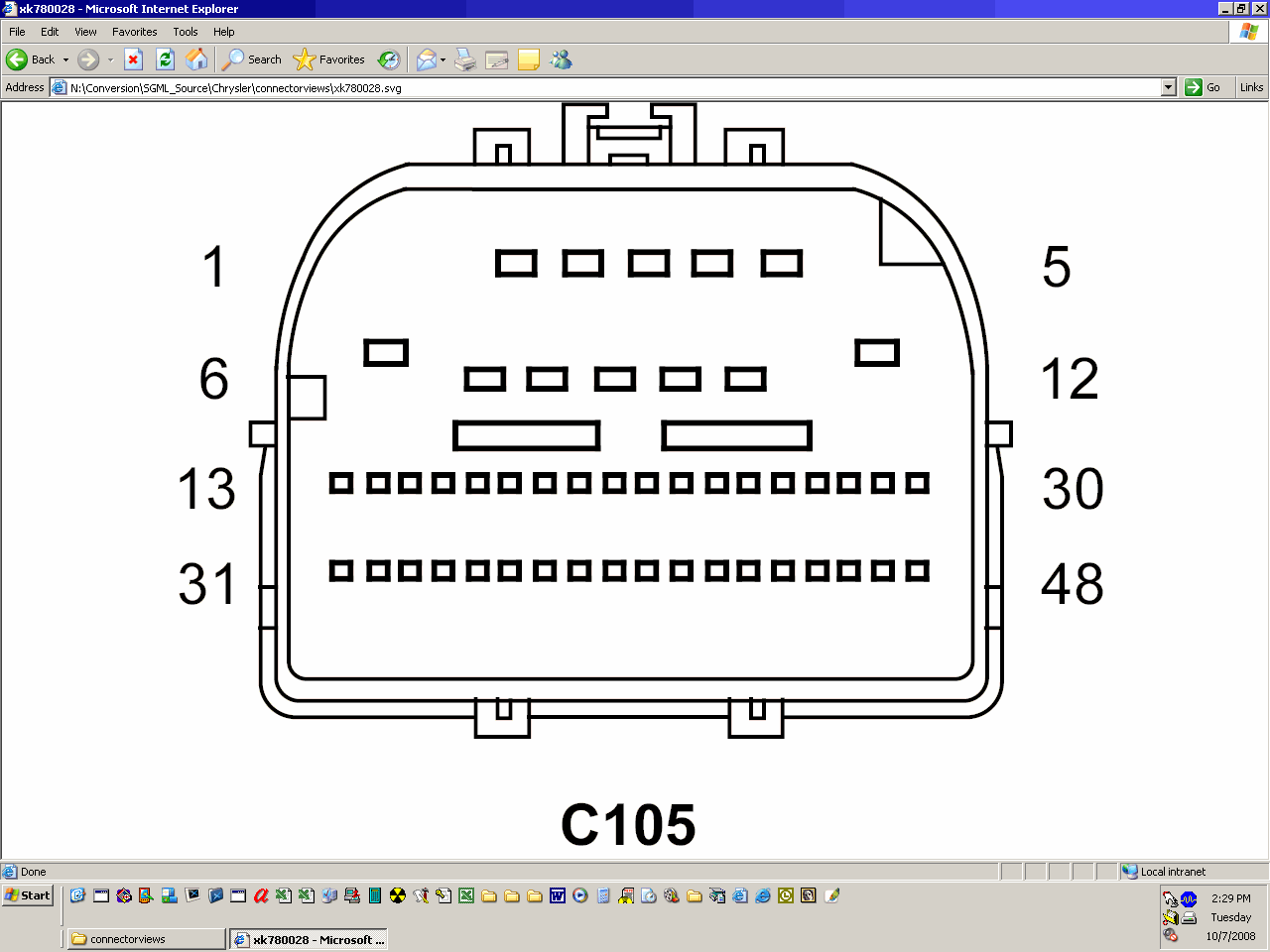

C105 - 48-WAYMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	F924 20PK/YL	FUSED RUN RELAY OUTPUT (TIRE PRESSURE MONITOR)
2	D508 20WT/TN	COM-LIN TIRE PRESSURE MONITOR LAN (TIRE PRESSURE MONITOR)
3	A907 14RD/DB	FUSED B(+)
4	A35 18RD/DG	REAR FOG LAMP RELAY OUTPUT
5	F921 20PK/GY	FUSED RUN RELAY OUTPUT (PARK ASSIST/4WD)
6	B400 14DG	TRAILER TOW ELECTRIC BRAKE OUTPUT (TRAILER TOW)
7	L76 18WT/BR	FUSED PARK LAMP RELAY OUTPUT (TRAILER TOW)
8	A909 14RD	FUSED B(+) (4WD)
9	K504 20BR	DRIVETRAIN 5 VOLT SUPPLY (4WD)
10	D54 20WT	CAN B BUS (-) (PARK ASSIST)
11	D55 20WT/OR	CAN B BUS (+) (PARK ASSIST)
12	A930 14RD	POWER OUTLET RELAY OUTPUT (TRAILER TOW EXPORT 4WD)
12	A930 14RD/WT	POWER OUTLET RELAY OUTPUT (TRAILER TOW EXPORT EXCEPT 4WD)
13	F941 20PK/LG	FUSED IGNITION SWITCH OUTPUT (RUN-START)
14	L1 18WT/LG	BACKUP LAMP FEED
15	N4 20DB/YL	FUEL LEVEL SENSOR NO. 1 SIGNAL
16	L62 18WT/OR	RIGHT REAR TURN SIGNAL CONTROL
17	L63 18WT/DG	LEFT REAR TURN SIGNAL CONTROL
18	L777 20WT/VT	FUSED PARK LAMP RELAY OUTPUT
19	L778 20WT/DB	FUSED PARK LAMP RELAY OUTPUT
20	B3 20DG/YL	LEFT REAR WHEEL SPEED SENSOR SIGNAL
21	B4 20LG/YL	LEFT REAR WHEEL SPEED SENSOR SUPPLY
22	K106 20VT/LB	NVLD SOL CONTROL
23	K107 20BR/LB	ESM SIGNAL
24	A109 16TN/RD	FUEL PUMP RELAY OUTPUT
25	L614 18WT/DB	TRAILER TOW RIGHT STOP/TURN SIGNAL
26	L615 18WT/YL	TRAILER TOW LEFT STOP/TURN SIGNAL
27	L50 18WT/TN	BRAKE LAMP SWITCH OUTPUT
28	B1 20DG/DB	RIGHT REAR WHEEL SPEED SENSOR SIGNAL
29	B2 20DG/WT	RIGHT REAR WHEEL SPEED SENSOR SUPPLY
30	A922 16RD	FUSED B(+)
31	D702 20WT/YL	PARK ASSIST SENSOR NO. 1 SIGNAL
32	D708 20WT/LB	PARK ASSIST SENSOR NO. 5 SIGNAL
33	D709 20WT/BR	PARK ASSIST SENSOR NO. 6 SIGNAL
34	D706 20WT/TN	PARK ASSIST SENSOR NO. 3 SIGNAL
35	D707 20WT/LG	PARK ASSIST SENSOR NO. 4 SIGNAL
36	D705 20WT/OR	PARK ASSIST SENSOR NO. 2 SIGNAL
37	X778 20GY/DB	PARK ASSIST DISPLAY SUPPLY
38	Z172 20BK/OR	GROUND
39	Z169 20BK/LG	GROUND
40	X702 20GY/LB	FRONT PARK ASSIST SENSOR SUPPLY
41	K977 20BR/LB	MODE SELECT
42	K977 20BR/LB	MODE SELECT (4WD)
43	Z210 20BK	GROUND
44	D64 20WT/LB	CAN C BUS (-) (4WD)
45	D65 20WT/LG	CAN C BUS (+) (4WD)
46	G95 20VT/WT	4WD NEUTRAL INDICATOR (4WD)
47	A926 18RD	FUSED B(+) (4WD EXCEPT EXPORT/ EXPORT PARK ASSIST)
47	A926 18RD/TN	FUSED B(+) (4WD EXPORT EXCEPT PARK ASSIST)
48	A927 18RD/BR	FUSED B(+) (4WD)
